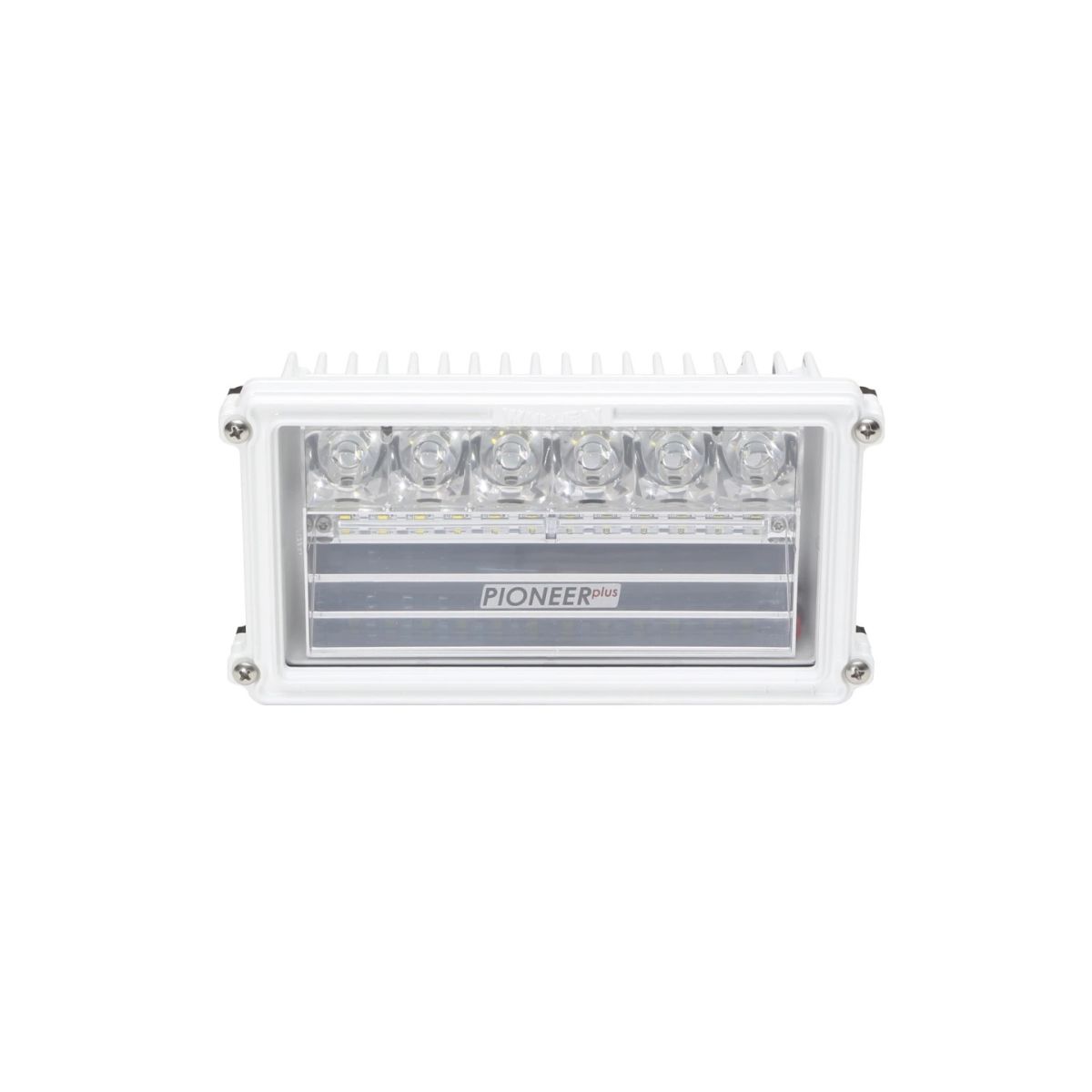

Whelen Pioneer Plus - Pioneer Max Combination Flood and 8 Degree Spotlight with Pole/Pedestal Mount Adapter

The Whelen Pioneer Plus Max Floodlight/8° Spotlight is one of the largest lightheads in the Pioneer Plus Series with an efficient bright output of 20,000 Lumens. PCP3 is instant On/Off eliminating the ramp-up time and high current in-rush required by high-intensity discharge and other light sources. Solid-state electronics and lamps are rugged and reliable, eliminating the high cost of lamp or ballast replacement. Pioneer Super-LED floodlights do not emit ultra violet light that attracts insects during night time operation, like other lights sources do. PCP3 Pioneer meets SAE1113-42 Class 5 testing for EMI. Class 5 is the lowest specification threshold. They emit no EMI, consume pure DC current, no switching for internal oscillation for total clean power consumption. The PCP3 is built using a rugged, die cast aluminum designed housing carries industry-leading thermal management. Upgrade your outdated halogen or HID lighting with Super-LED luminosity and efficiency.

This is a Special Order item. Special order items are non-cancelable, non-returnable, and non-refundable. All sales for special order items are final.

Features:

• Combination spotlight/floodlight.
• Solid-state electronics and lamps are rugged and reliable.
• Floodlight is on upper level with 8° spotlight on lower level.
• Does not emit ultra violet light that attracts insects during night time operation.
• Rugged, die cast aluminum designed housing carries industry-leading thermal management.
• Long life operation: rated to last thousands of hours.
• Available in White or Black powder coated housing.
• DC models include 20 foot cable.
• PCP3 is instant On/Off.
• Removeable handle.
• Optional universal bail bracket for vertical or horizontal mounting available below.
• Optional pedestal mount bracket.
• Available in pedestal/pole mount models with or without On/Off switch.
• Pedestal/pole mount models have been fitted with a 3/4 inch NPT pole mount that fits most industry standard poles.

Specifications:

• Light Output: 20,000 Lumens
• Operating Voltage: 12 VDC
• Current Draw: 16.5 amps
• Power Usage: 225 watts.
• Meets SAE1113-42 Class 5 testing for EMI.
• Dimensions (lighthead only): 6' (125mm) H x 14' (356mm) L x 2-7/8' (73mm) D.

Whelen Five Year HDP Heavy-Duty Professional Warranty
