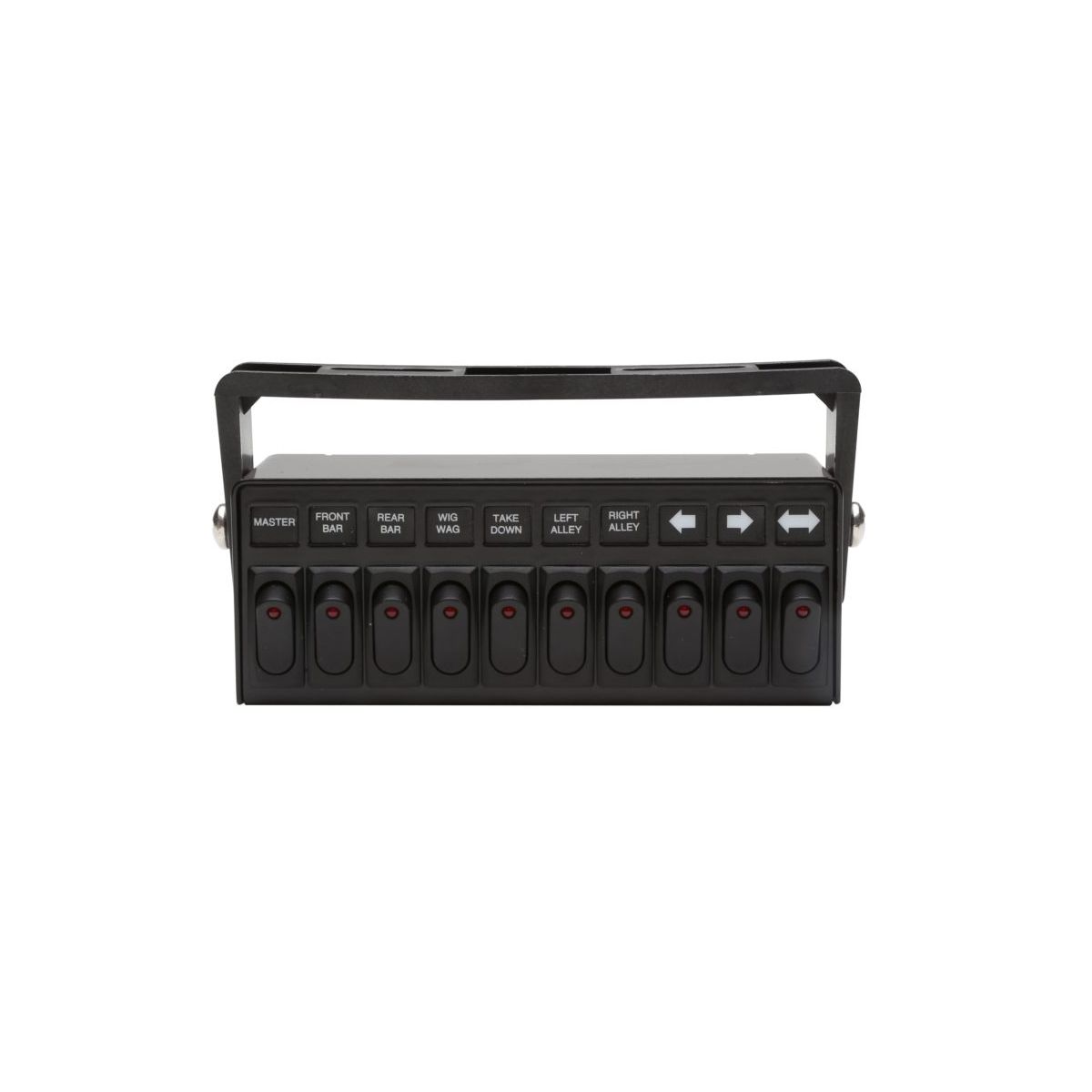

Whelen PCCW Series Light Switch Control - Similar to PCC10W, Except Last On/Off Switch is Replaced with a Momentary Switch

The compact and economic PCCW Series is engineered for complete control of numerous auxiliary light functions. Designed for simplistic usage, all models are equipped with LED indicators and include press-on labels for customization.

Features:

• Complete control of four, six, or ten auxiliary light
• functions
• 25 amp switches
• Rocker-style single pole/single throw switches with
• ‘active’ LED indicators
• Individual spade-type fuses conveniently located on
• rear mounted fuse strip
• Ignition controlled backlighted legend windows for
• easy visibility in any light
• Backlight circuit can be connected to vehicle dimmer
• switch to control backlight intensity
• 72 press-on legend tabs for customization
• Black epoxy-finished steel housing
• Common ground post for ease of installing
• 12 VDC

Specifications:

PCC4W

• Flying leads connection
• Includes an adjustable two position universal bail
• bracket strap mounting kit for over or under dash
• mounting
• Dimensions: 2-3/4” (70mm) H x 3” (76mm) W x 4”
• (102mm) D
• Adjustable bail bracket overall heights:
• 2-3/4” (70mm) H (lower bracket position), 3-1/4” (83mm) H (higher bracket position)

PCC6W and PCC10W

• Terminal block for easy installation
• One 10 amp momentary switch in the last position in
• place of the standard On/Off switch
• Includes an adjustable two position universal bail
• bracket strap mounting kit for over or under dash
• mounting
• Dimensions: 3-3/8” (86mm) H x 6” (152mm) W x 3-9/16”
• (91mm) D
• Adjustable bracket overall heights:
• 3-3/8” (86mm) H (lower bracket position), 3-3/4” (96mm) H (higher bracket position)

Soundoff Signal Two Year Warranty
