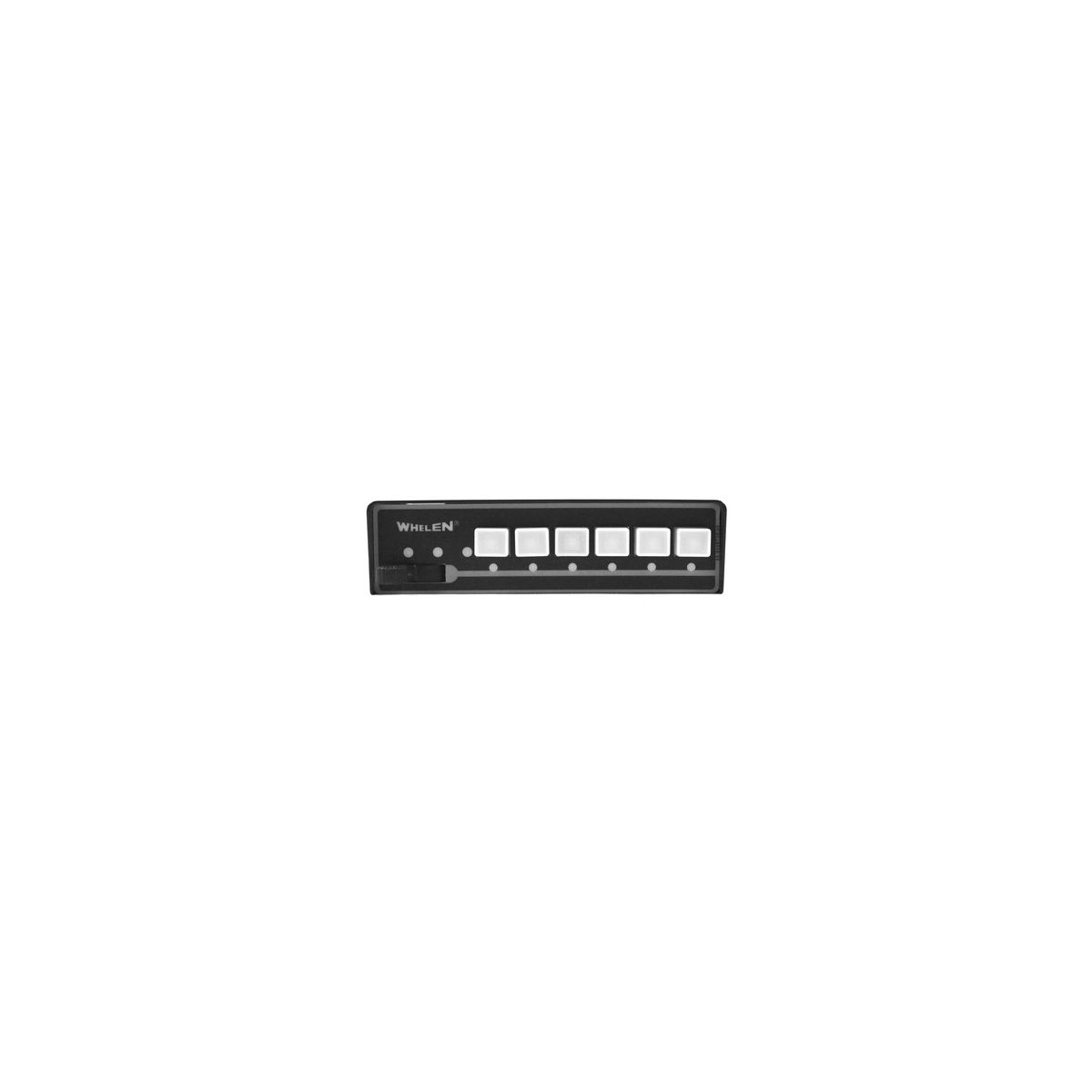

Whelen PCCS9RW Light Switch Control

The PCCS9RW Light Switch Control provides reliable, high-current control for nine auxiliary light functions with built-in 20-amp relays. This versatile controller features a three-position slide switch and six programmable push-buttons that can be configured for a range of operations, including push-on, push-off, momentary, flashing, or timed outputs. With an auxiliary input for duplicating siren functions across multiple units and the ability to program any button to activate any combination of relay outputs, the PCCS9RW offers enhanced flexibility. LED backlighting ensures visibility during nighttime use, while red indicator lights identify active switches. Customizable with 72 press-on legend tabs, the PCCS9RW includes a universal bail bracket mounting kit for seamless over or under dash installation. Designed for compatibility, it can stack-mount with WS295 Series siren amplifiers or Traffic Advisor™ control heads, making it an essential tool for emergency vehicles.

FEATURES

• Complete control of nine auxiliary light functions
• 20 amp relays
• Three-position slide switch
• Six programmable push-button switches can be easily programmed for push-on, push-off, momentary, flashing, or timed output operations
• Any switch can be programmed to activate any combination of the relay outputs or any push-button switch
• Any switch can be programmed to enable siren functions
• One auxiliary input for easy siren function duplication to other units
• Easy to clone to multiple controllers
• Individual 20 amp fused outputs
• 72 press-on legend tabs for customization
• Legend buttons feature LED backlighting for nighttime viewing
• Active switches are easily identified by a Red indicator light located below each legend button
• Momentary switch type is available for use with low power, gun lock, and other momentary applications
• Includes a universal bail bracket strap mounting kit for over or under dash mounting
• Designed to stack-mount with the WS295 Series siren amplifiers or Traffic Advisor™
  control head
