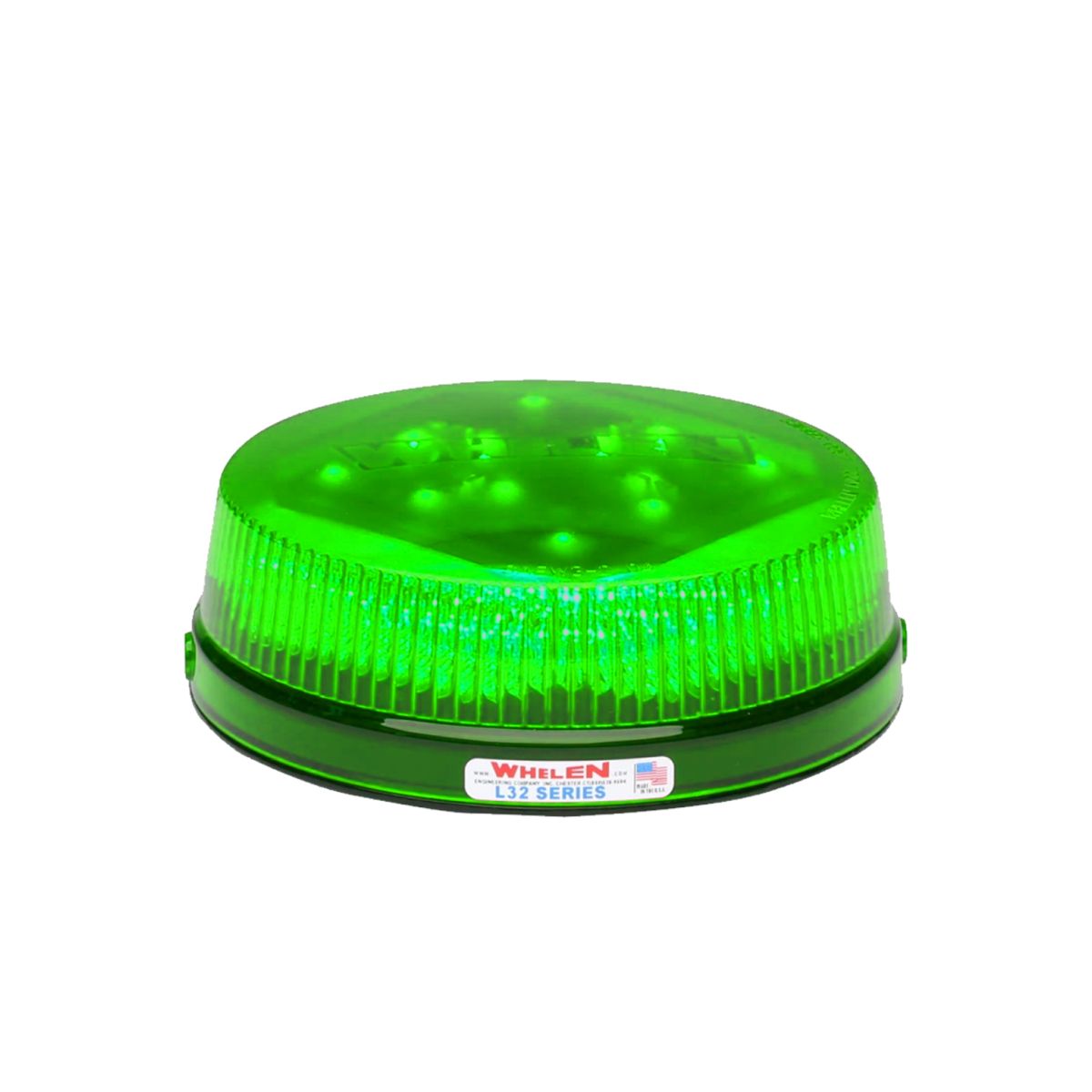

Whelen L32 Low Dome Beacon Green - Suction Mount

The Whelen L32 beacon is an ultra-low-profile beacon designed to provide powerful 360-degree warning coverage for fire and utility vehicles. Built with high-output Super-LED® technology, the L32 is designed to provide enhanced visibility in emergency situations and roadside operations. This beacon is built to endure the elements, with a rugged construction that ensures continuous, reliable operation even in extreme conditions. With multiple flash patterns and easy mounting options, the L32 beacon is versatile enough to meet the needs of a variety of vehicle applications. Built to last, the L32’s long-life LED technology delivers thousands of hours of dependable performance.

FEATURES

• UV coated dome
• Powder-coated cast aluminum base
• Conformal coated electronics
• Full reverse polarity protection
• Hard-coated domes resist environmental damage from sand, sun, salt, and road chemicals
• Available in permanent, magnetic, or magnetic/suction mount models
• Available in Amber, Blue, Green, Red, and White
• Rated for thousands of hours of use

SPECS

Voltage:     12/24 VDC
Amps:     1.32 (peak), 0.53 (avg.) @ 24VDC. 4 (peak), 1.6 (avg.) @ 12VDC
Certifications:     NFPA 1900 Contributor
L32:     SAE Class 1 Certified (exception of Green)
Dimensions:     L31: 4” (102mm) H x 7.20” (183mm) D
Warranty:     5-year warranty

MAGNETIC AND MAGNETIC/SUCTION MOUNT

• Supplied with a 10’ cord and cigar plug with built-in On/Off switch with LED “On” indicator
• 80 lb. magnetic mounting base
• 75 SignalAlert™ flashes per minute

PERMANENT (FLAT) MOUNT

• 6” pigtail included
• 69 Scan-Lock™ flash patterns including 4 simulated rotating patterns
• Alternatively or simultaneously flash multiple patterns with up to 8 Whelen Super-LED beacons either via Core programming or sync wire connection
• Hi/Low intensity control
• Cruise light feature
