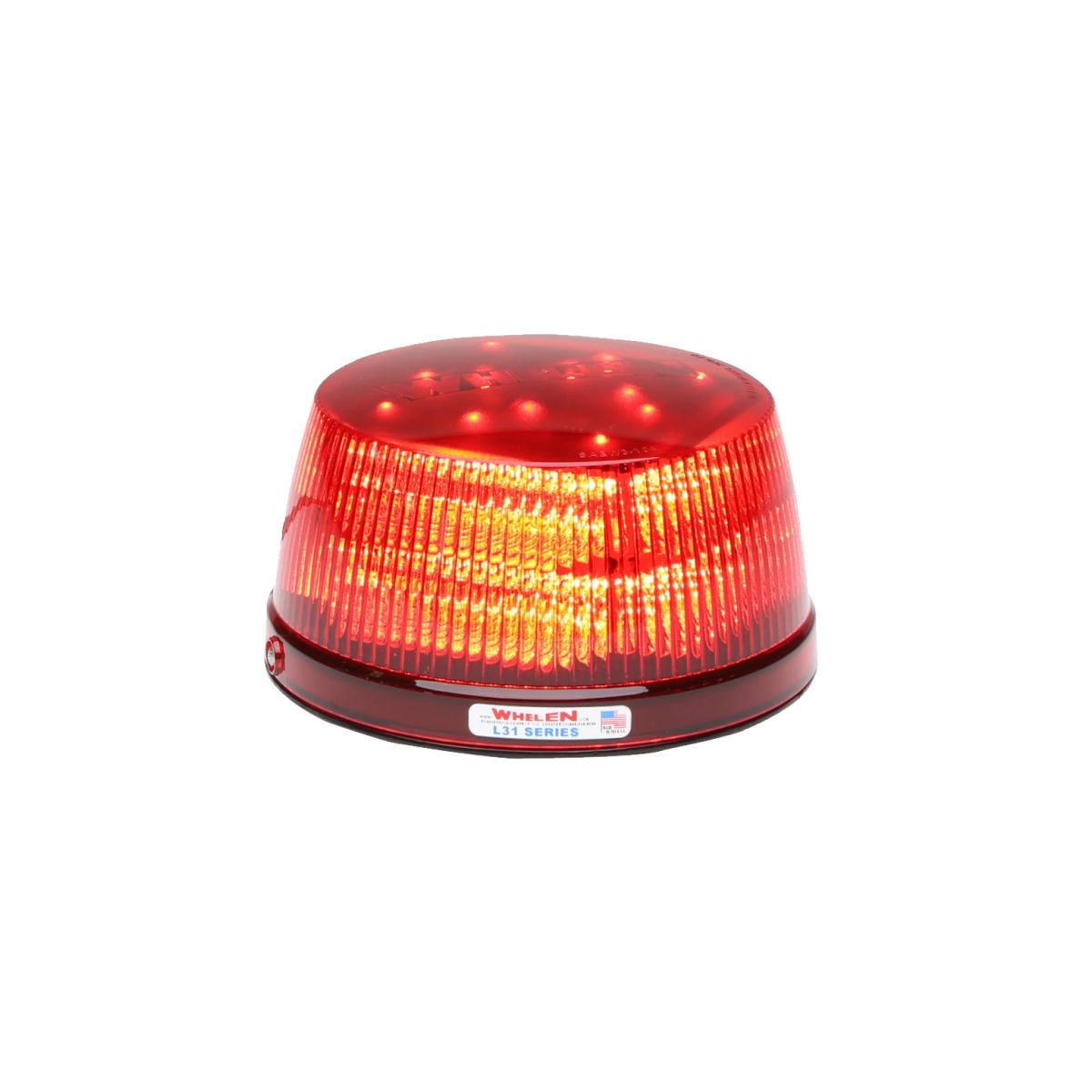

Whelen L31 High Dome Beacon Red - Flat Mount

The Whelen L31 beacon is engineered to produce powerful 360-degree warning coverage for fire and municipal vehicles. This low-profile beacon uses Whelen’s Super-LED® technology to deliver intense light output and features multiple built-in flash patterns and simulated rotating patterns, making it adaptable to various operational needs. The L31’s robust construction ensures it can withstand tough weather and heavy use. Rated for thousands of hours of continuous use, the L31 beacon offers dependable, high-performance warning protection that keeps your fleet visible and safe.

FEATURES

• UV coated dome
• Powder-coated cast aluminum base
• Conformal coated electronics
• Full reverse polarity protection
• Hard-coated domes resist environmental damage from sand, sun, salt, and road chemicals
• Available in permanent, magnetic, or magnetic/suction mount models
• Available in Amber, Blue, Green, Red, and White
• Rated for thousands of hours of use

SPECS

Voltage:     12/24 VDC
Amps:     1.32 (peak), 0.53 (avg.) @ 24VDC. 4 (peak), 1.6 (avg.) @ 12VDC
Certifications:     NFPA 1900 Contributor
L31:     SAE Class 1 Certified (exception of Green and White); California Title 13 for L31HAFCA and L31HAMCA
Dimensions:     L31: 4” (102mm) H x 7.20” (183mm) D
Warranty:     5-year warranty

MAGNETIC AND MAGNETIC/SUCTION MOUNT

• Supplied with a 10’ cord and cigar plug with built-in On/Off switch with LED “On” indicator
• 80 lb. magnetic mounting base
• 75 SignalAlert™ flashes per minute

PERMANENT (FLAT) MOUNT

• 6” pigtail included
• 69 Scan-Lock™ flash patterns including 4 simulated rotating patterns
• Alternatively or simultaneously flash multiple patterns with up to 8 Whelen Super-LED beacons either via Core programming or sync wire connection
• Hi/Low intensity control
• Cruise light feature
