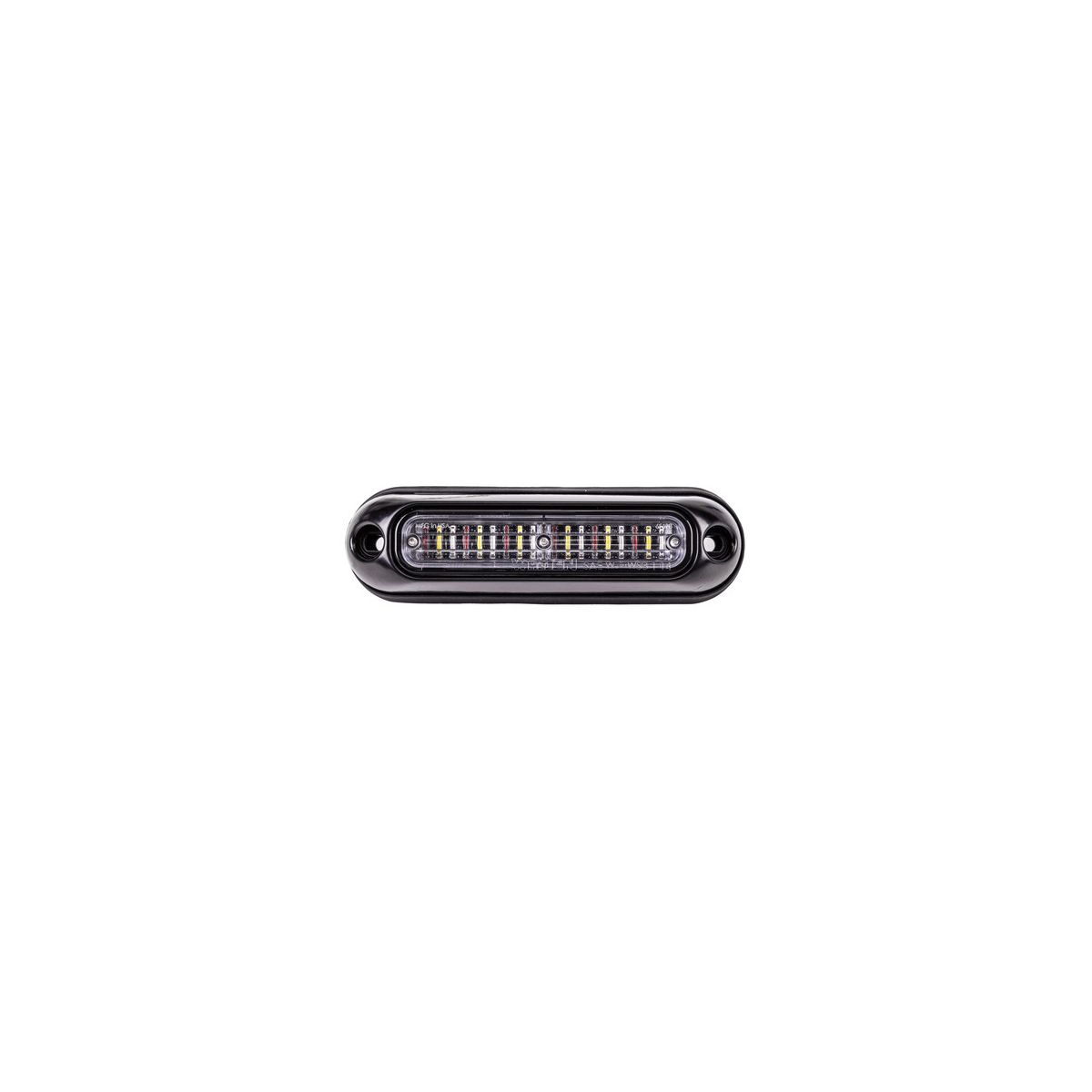

Whelen ION TRIO Surface Mount Warning Light
Shop with Confidence
The Whelen ION TRIO Surface Mount Warning Light is a linear tri-color warning light that includes six LEDs of each of three colors for a total of 18 LEDs with a clear optic collimator and clear non-optic lens. The I3SMJC light has an internal flasher with 33 Scan-Lock flash patterns including steady burn. Some flash patterns meet California Title XIII. The I3SMxx also provides a synchronize feature. The hard coated lens provides extended life/luster protection against UV and chemical stresses. The lens has a liquid injected molded silicone gasket to be resistant to water, moisture, dust, and other environmental conditions. The I3SMxx light has a die cast black powder coated surface mount housing. The I3SMxx comes with a 12' unterminated pigtail. Included is a horizontal surface mount kit with mounting hardware.
Available color combinations:
- I3SMJA - Red/Blue/Amber
- I3SMJC - Red/Blue/White
- I3SMKC - Red/Amber/White
- I3SMMC - Blue/Amber/White
Feature:
- Tri-color warning light with six LEDs of each color for a total of 18 LEDs with a clear optic collimator and clear non-optic lens.
- Individual Control of each Color for programming and operation.
- Internal flasher with 33 Scan-Lock flash patterns including steady burn.
- Some flash patterns meet California Title XIII.
- SAE Class 1.
- Synchronize feature included.
- Die cast black powder coated surface mount housing.
- Comes with a 12' unterminated pigtail.
- Included is a horizontal surface mount kit with mounting hardware.
Specifications:
- Voltage: +12 VDC
- Size: 1.4375” H x 5.624” W x 1.00” D.
- Amp Draw: 1.00 Amps Peak / 0.40 Amps Average
- Lens Color: Clear
Whelen Five Year Warranty
