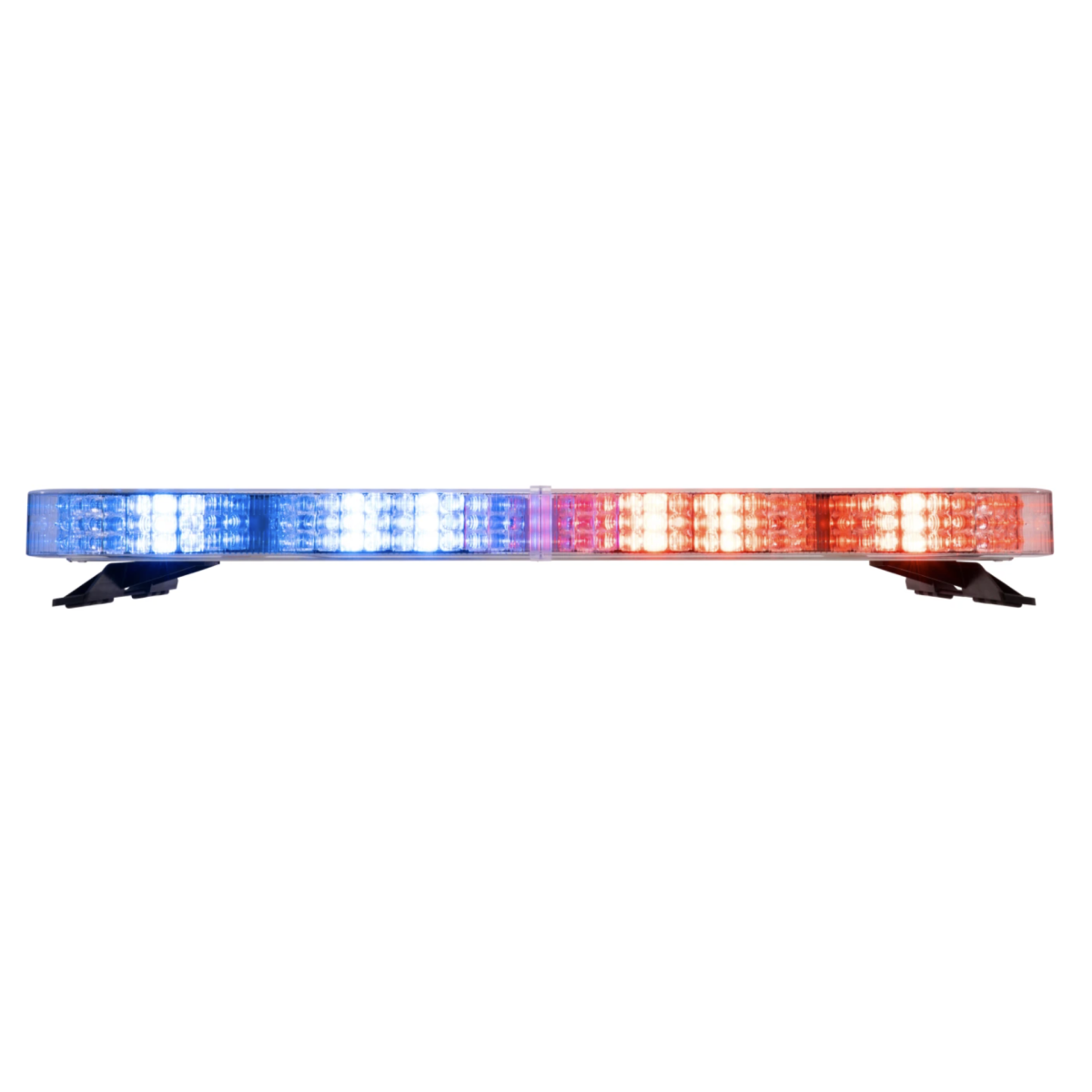

Whelen Freedom V

Freedom® V

The Freedom V Lightbar is designed to deliver next-level visibility and control for all types of fleet vehicles, including fire trucks, police vehicles, ambulances, tow trucks, DOT vehicles, and amber warning fleets. Featuring groundbreaking FocusBeam™ Technology, Freedom V transforms raw LED output into highly focused, precisely angled beams that cut through distance, weather, bright sunlight, and visual clutter, helping drivers recognize warning signals sooner. Its universal lightheads and configurable design allow fleets to mix SOLO™, DUO™, and TRIO™ lightheads to create custom 360° coverage, providing consistent high-intensity output across all colors and functions.Seamlessly integrated with Whelen Core® control systems, Freedom V offers fleets advanced lighting control, adaptability, and reliability, making it the ideal solution for enhancing visibility, safety, and operational efficiency in emergency response, law enforcement, roadway safety, and fleet management applications.

 Optics:

• FocusBeam™ Technology: Projects high-intensity, long-range beams to ensure earlier detection and maximum protection

Technology:

• Dynamic Variable Intensity™ (DVI™): Gradually adjusts light intensity for improved nighttime visibility and safety
• Adaptive Illumination: Redirect high-intensity output in real-time
• Universal Lightheads: Every lighthead is multi-purpose, no dedicated take-downs or alleys required
• 360° Optimized Light Distribution: Arc, Bridge, and End lighthead configurations create a seamless, high-intensity ring of usable light - regardless of color
• Dynamic Versatility: Mix and match SOLO™, DUO™, and TRIO™ lightheads within a single lightbar
• Flash Patterns: Unlimited Flash Patterns, via Command®

 Control: WeCanX® (CAN Based)

Customization:

• Lenses & Dividers: Clear, Color, or Smoked
• Colored Tops: Black, Blue, Red, or Silver available

 Construction:

• Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals
• Advanced Thermal Design: Reduces LED stress during extended use
• Aluminum Top: Repels hail and environmental damages
• Extruded Aluminum Platform
• Weather-Sealed: One or two single sealing points ensure lightbar integrity in all weather conditions
• Center Dividers with LIM (Liquid Injection Molded) Seals: Protect internal components
• Conformal Coated Electronics: Environmental, moisture, and vibration resistance
• Reverse Polarity Protection: Prevents damage from reversed power connections
• Point-to-Point Wiring: Between the I/O board and each lighthead allows for easy reconfiguration

 Mounting: Roof-Mounted

 Included Cables & Hardware: 17' (5.18 m) Communication Cable and either a 17', 20' (6.10 m), or 25' (7.62 m) Input Power Cable of choice

 Certifications:

• SAE Standards
• SAE Class 1
• CISPR25
• NFPA 1900 Contributor
• IP-33 Rating

 Warranty:

• WeCanX Model I/O Boards: 10-year
• All Lightheads: 10-year

 Please see Whelen warranty statement for more information.

Voltage: 10-30 VDC

 Operating Temperature: -40C to +65C

 Weight (Does not include optional lightheads):

• 23" = 12.05 lb (5.46 kg)
• 44" = 21.82 lb (9.89 kg)
• 48" = 23.63 lb (10.71 kg)
• 55" = 26.56 lb (12.04 kg)
• 60" = 29.86 lb (13.54 kg)
• 72" = 35.06 lb (15.90 kg)
• 81" = 40.2 lb (18.23 kg)
• 92" = 45.24 lb (20.52 kg)

 Available Size:

• Available Lengths: 23" (58.42 cm), 44.5" (113.03 cm), 49.27" (124.46 cm), 55" (139.70 cm), 60" (152.40 cm), 72" (182.88 cm), 81" (205.74 cm), 92" (233.68 cm)
• Height: 3.71" (9.42 cm) (no mount)
• Width: 12.41" (31.52 cm)
