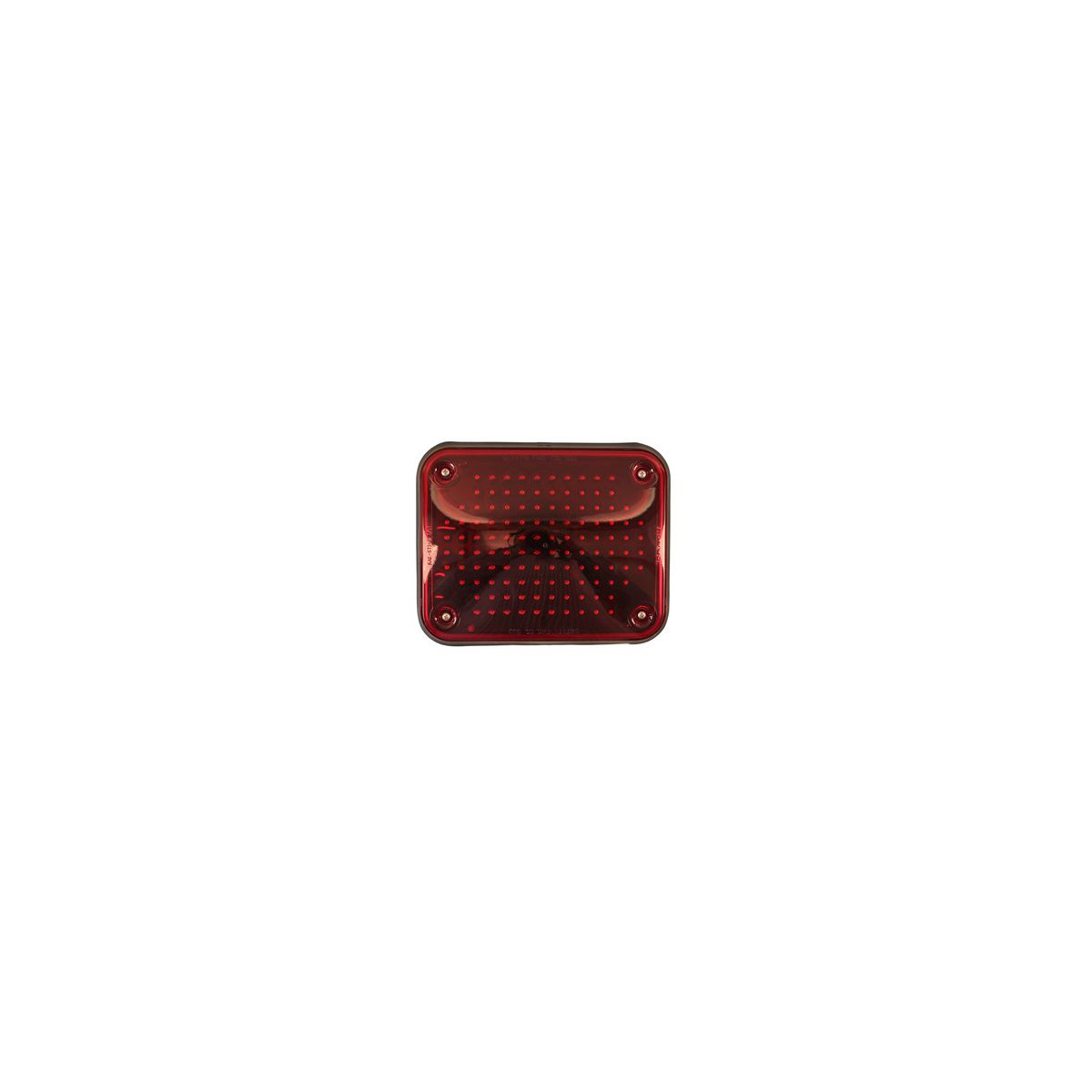

Whelen 900 Series LED Brake/Tail/Turn Lighthead

$301.82
SKU
90BTT
Read More
Read Less
This 900 series brake/tail/turn light contains 120 5mm LEDs. The LEDs emit in 2 flash patterns: signal-alert and turn signal flash. The unit is rated for 100,000 hours of continuous operation and furnished with a 6", four-wire pigtail. It is backed by a Whelen five year warranty.

Read More
Read Less

Shop with Confidence

Read More
Read Less

The Whelen 900 Series LED Brake/Tail/Turn Lighthead comes with 2 flash patterns including Signal-Alert pattern to enhance brake or turn signal flash activity, and dual intensity modes. When the brakes are activated, Signal-Alert provides a 4 flash burst of light in 300 millionths of a second before turning steady-on for a more eye-catching pattern. Comes standard with a newly designed gasket for mounting directly into a hole cut-out on the vehicle without using a housing or a flange. The Whelen Five Year Unconditional HDP Heavy Duty Professional Warranty applies to this lighthead.

Available with Red or Clear lenses.

Features:

  • 120 High Intensity 5mm LEDs.
  • 2 flash patterns including Signal-Alert pattern to enhance brake or turn signal flash activity.
  • Standard with dual intensity modes.
  • Replaces all min/max BTT models.
  • Epoxy encapsulated for vibration, moisture and corrosion resistance.
  • Rated for 100,000 hours of continuous operation.
  • Furnished with 6' four wire pigtail.
  • Comes standard with a newly designed gasket for mounting on the vehicle without using a housing or a flange.
  • Mounting flange options are purchased separately.

Specifications:

  • Voltage: 12 VDC.
  • Current Draw (Brake): 0.375 Amps.
  • Current Draw (Tail): 0.040 Amps.
  • Dimensions: 7-1/8' (181mm) H x 9-1/8' (232mm) W x 1-3/4' D.

Certifications: FMVSS108 certified, mounted horizontal or vertical.

Order the Optional Flange Kit from the side bar to the right.

Whelen Five Year Unconditional HDP Heavy Duty Professional Warranty

Read More
Read Less
90BTT_Install_Guide (64.36 kB)
