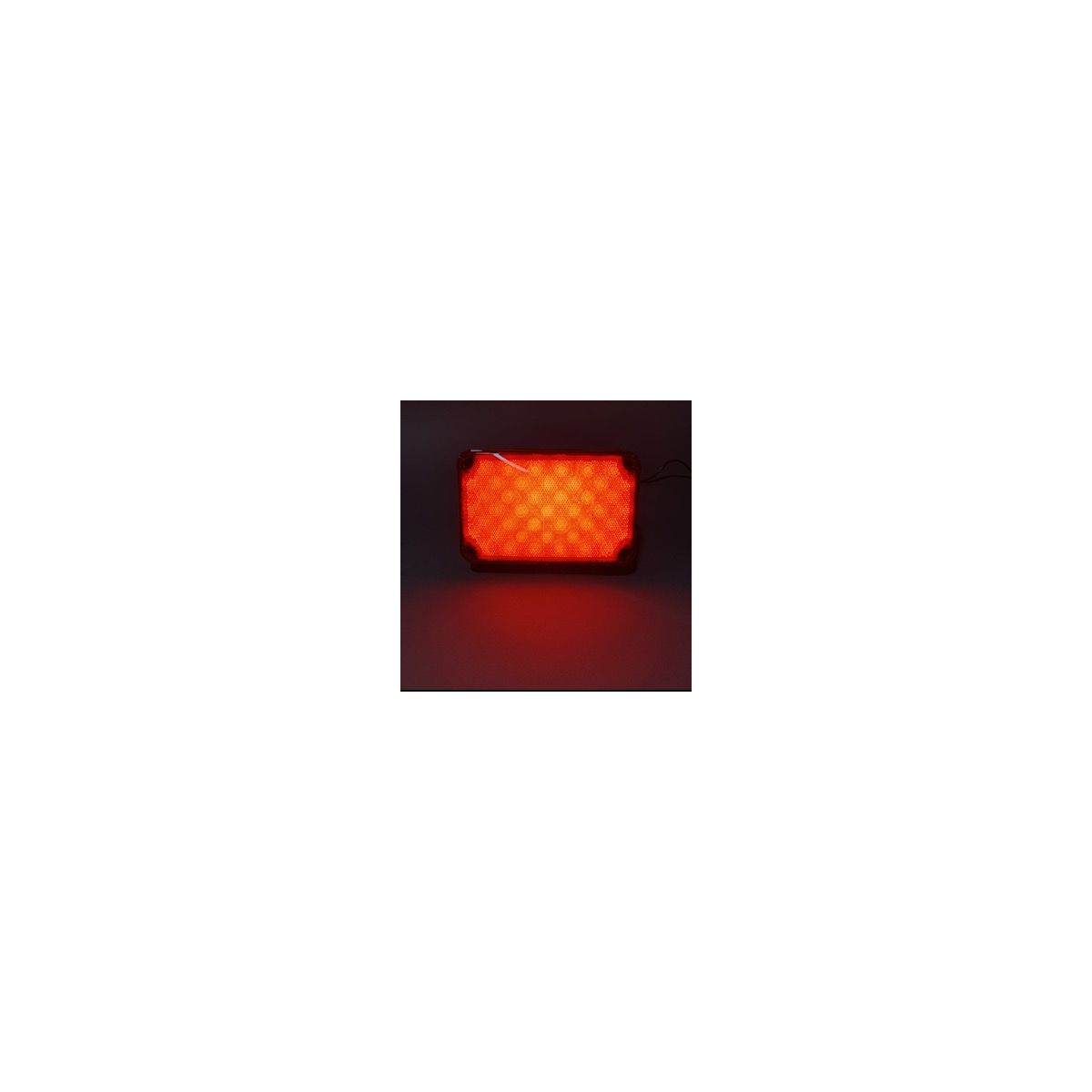

Whelen 600 Series LED Brake/Tail/Turn Lighthead

Your Price $156.00 Retail Price $240.00
SKU
604BTT
Read More
Read Less
Read More
Read Less

Shop with Confidence

Read More
Read Less

The Whelen 600 Series LED Brake/Tail/Turn Lighthead comes with 2 flash patterns including Signal-Alert pattern to enhance brake or turn signal flash activity, and dual intensity modes. When the brakes are activated, Signal-Alert provides a 4 flash burst of light in 300 millionths of a second before turning steady-on for a more eye-catching pattern. Comes standard with a newly designed gasket for mounting directly into a hole cut-out on the vehicle without using a housing or a flange. The Whelen Five Year Unconditional HDP Heavy Duty Professional Warranty applies to this lighthead.

Features:

  • 84 High Intensity 5mm LEDs.
  • 2 flash patterns including Signal-Alert pattern to enhance brake or turn signal flash activity.
  • Standard with dual intensity modes.
  • Replaces all min/max BTT models.
  • Epoxy encapsulated for vibration, moisture and corrosion resistance.
  • Rated for 100,000 hours of continuous operation.
  • Furnished with 6' four wire pigtail.
  • Comes standard with a newly designed gasket for mounting on the vehicle without using a housing or a flange.
  • Mounting flange options are purchased separately.

Specifications:

  • Voltage: 12 VDC.
  • Current Draw (Brake): 0.375 Amps.
  • Current Draw (Tail): 0.040 Amps.
  • Dimensions: 4-1/8' (105mm) H x 6-1/2' (165mm) W x 1-5/8' (41mm) D.

Certifications:

  • CAC, Title 13, Article 22 (red, blue and amber lightheads)
  • KKK 1822-E - Federal Ambulance Specification, Upper & Lower Zones.
  • SAE J595 - Flashing Warning Lamps for Authorized Emergency, Maintenance, and Service Vehicles (Jan 90)
  • NFPA 1901 - (1999 Edition).

Order the Optional Flange Kit from the side bar on the right.

Whelen Five Year Unconditional HDP Heavy Duty Professional Warranty

Read More
Read Less
60BTT_Install_Guide (241.33 kB)
