Unity X-LED 6" Spotlight Black, 9-degree Beam Pattern
A spotlight that offers instant aimable light. The unit's interior control handle and fingertip switch provide 360- degree horizontal rotation with 120 degree veritcal adjustment. The head assembly is high impact PC/ABS. Each LED has it's own individually focused reflector for a precise beam pattern that's 9-degrees veritcal by 9-degrees horizontal.Â
Shop with Confidence

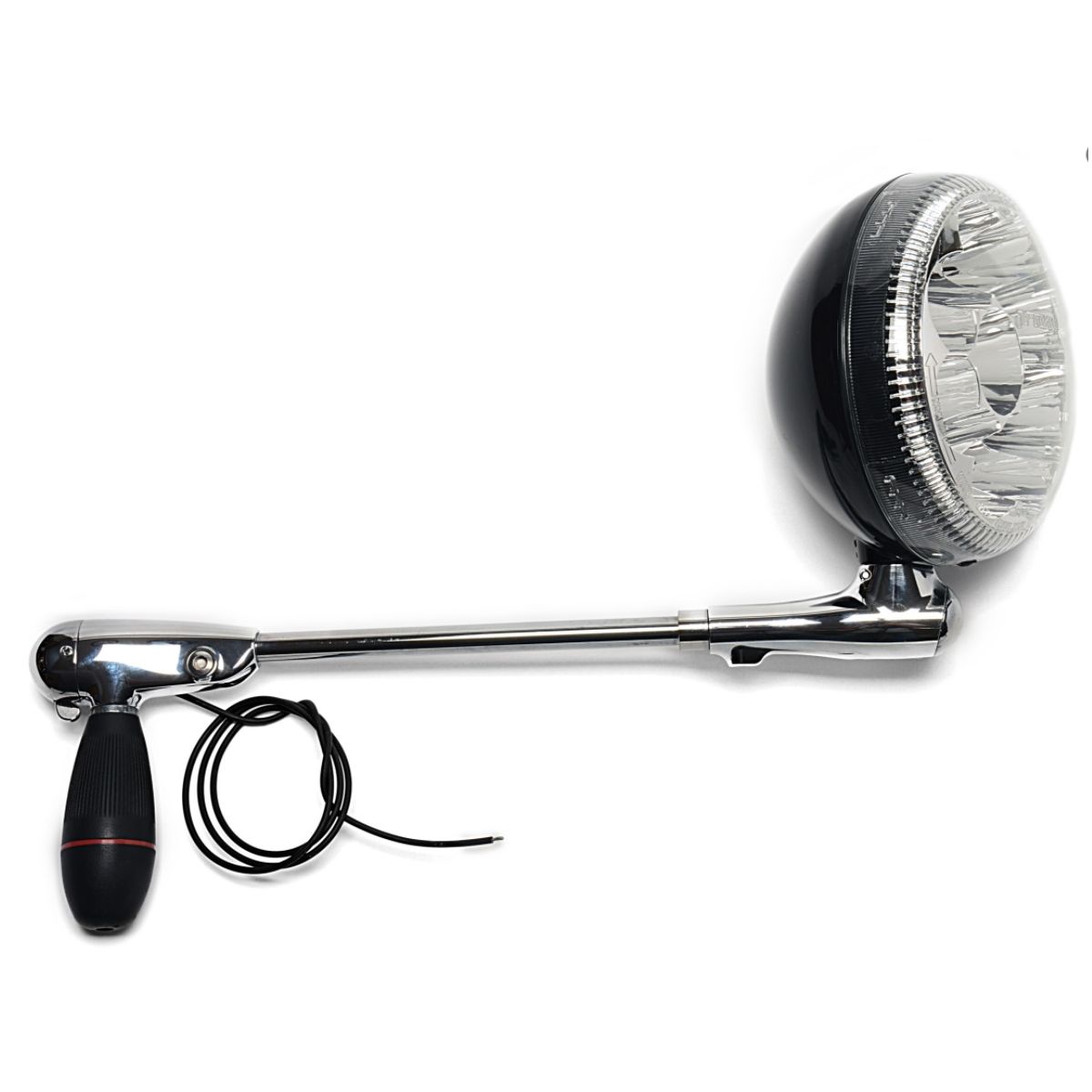

Unity X-LEDâ„¢ post-mount spotlights are the only auxiliary lighting products that offer the convenience and safety of instant aimable light when and where you want it! The interior control handle with fingertip switch provides 360 degree continuous horizontal rotation and up to 120 degree vertical adjustment.
The X335 series post-mount spotlights feature a 6 in. LED composite lamp rated at 225,000 candlepower, 12 volts, 30 watts and 50,000 hours lamp life. Each LED has its own individually focused reflector for maximum intensity producing a uniform, precise 9° H x 9° V beam pattern with a warmer beam color temperature. Meets SAE J591 Spotlamp standard.
The lamp head has a U-V hard-coated, polycarbonate, replaceable lens; precision molded PC reflector and a nickel plated zinc die cast heat sink. The X335 series head assembly is made of high impact PC/ABS with black finish, is vented with a GORE-TEX® membrane for cool operation.
Ideal for recreational nighttime activities yet made for the demands of working and emergency vehicles of all kinds. Installation kits are sold separately and include mounting bracket, fasteners, gasket, drill guide, trim pieces, locating template and complete instructions for do-it-yourself installation.
Features:
- 360 degree continuous horizontal rotation and up to 120 degree vertical adjustment
- 6 in. LED composite lamp rated at 225,000 candlepower
- Hard-coated, polycarbonate, sealed lens
- Each LED has its own individually focused reflector for maximum intensity
- Head assembly made of high impact PC/ABS with black finish
- Precise 9° H x 9° V beam pattern with a warmer beam color temperature
Specifications:
- Voltage: 12 V
- Watts: 30W
- Hours of Lamp Life: 50,000 h
- Spotlight Shaft Length: 10" Exposed Shaft* and 15 1/2" Center to Center**
*Exposed Shaft: The amount of tubing visible between the head housing and the handle housing when the spotlight is assembled.
**Center to Center: The distance between where the gears mesh in the handle and where the gears mesh in the head when the spotlight is assembled.
