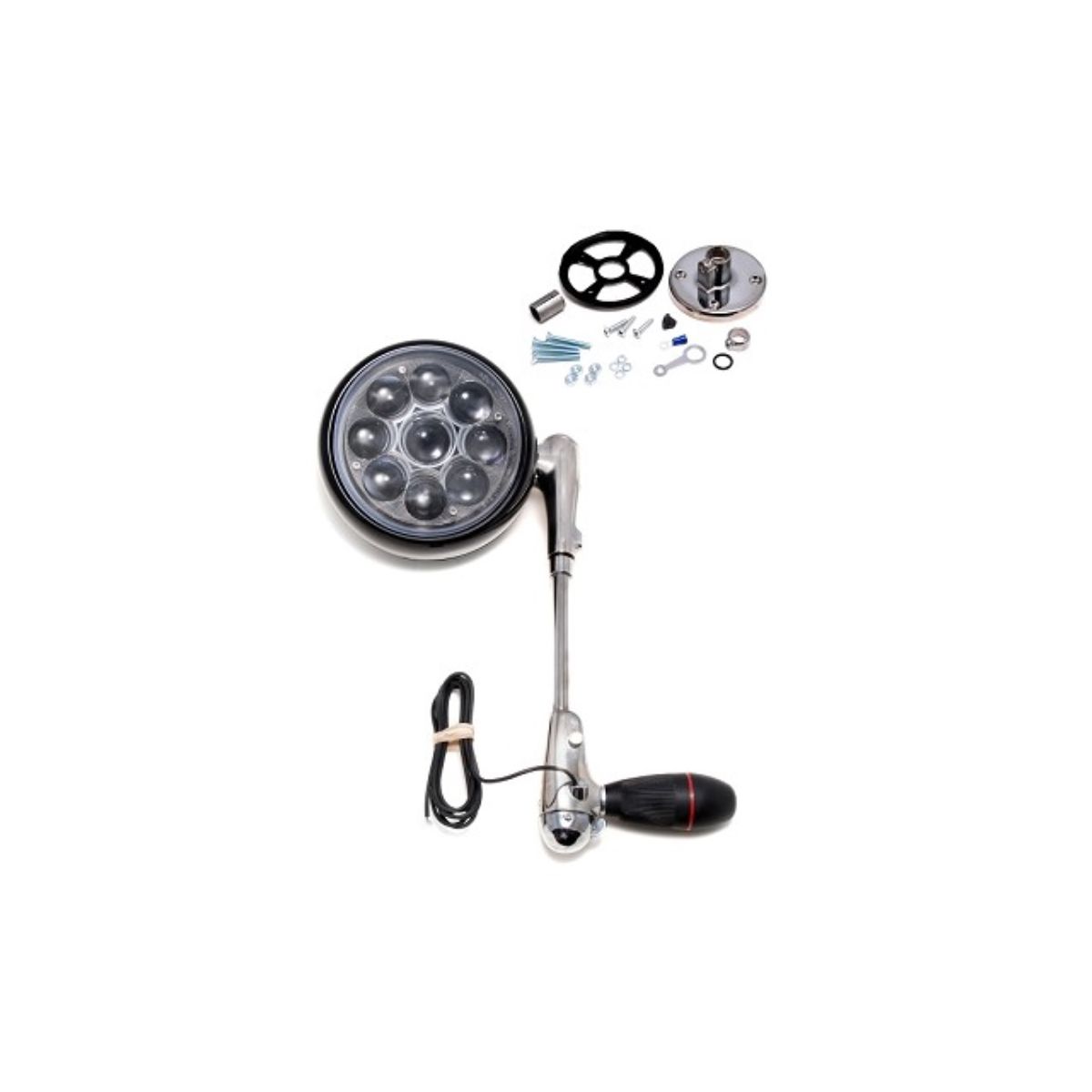

Unity 385 Series 6" Rooflight (Includes Install Kit) "A" Shaft Length, Black Housing

The Beam® Rooflights feature 360º continuous vertical rotation and 180º horizontal adjustment, with an O-ring, leak proof design. Available with either a "standard" 2 3/4" roof clearance (measured from top of roof to surface to bottom of headliner) or "shorty" 3/4" roof clearance (designed for vehicles with flush or no headliner). Easily installed, each unit comes complete with a universal mounting bracket no 2874, template, and installation instructions.

Features:

• 360-degree continuous horizontal rotation and up to 180-degree vertical adjustment
• O-ring, leak proof design
• Standard: 2 3/4" roof clearance, shorty: 3/4" roof clearance, “A: Length Shaft: 4 ½” Clearance, “V” Length Shaft: 5 ½” Clearance
• Universal mounting bracket no.2874 included.

Specifications:

• Lamp No: U-8547
• Candlepower: 215,000
• Volts: 12 V
• Watts: 30 W
• Life: 50,000 Hrs

Length:

• Shorty: Exposed Shaft: 2 ¾”, Center to Center: 8 ¼”
• Standard: Exposed Shaft: 4 ¾”, Center to Center: 10 ¼”
• “A” Length: Exposed Shaft: 6 ½”, Center to Center: 12”
• “V” Length: Exposed Shaft: 7 ½”, Center to Center: 13”

*Exposed Shaft: The amount of tubing visible between the head housing and the handle housing when the spotlight is assembled.

**Center to Center: The distance between where the gears mesh in the handle and where the gears mesh in the head when the spotlight is assembled.
