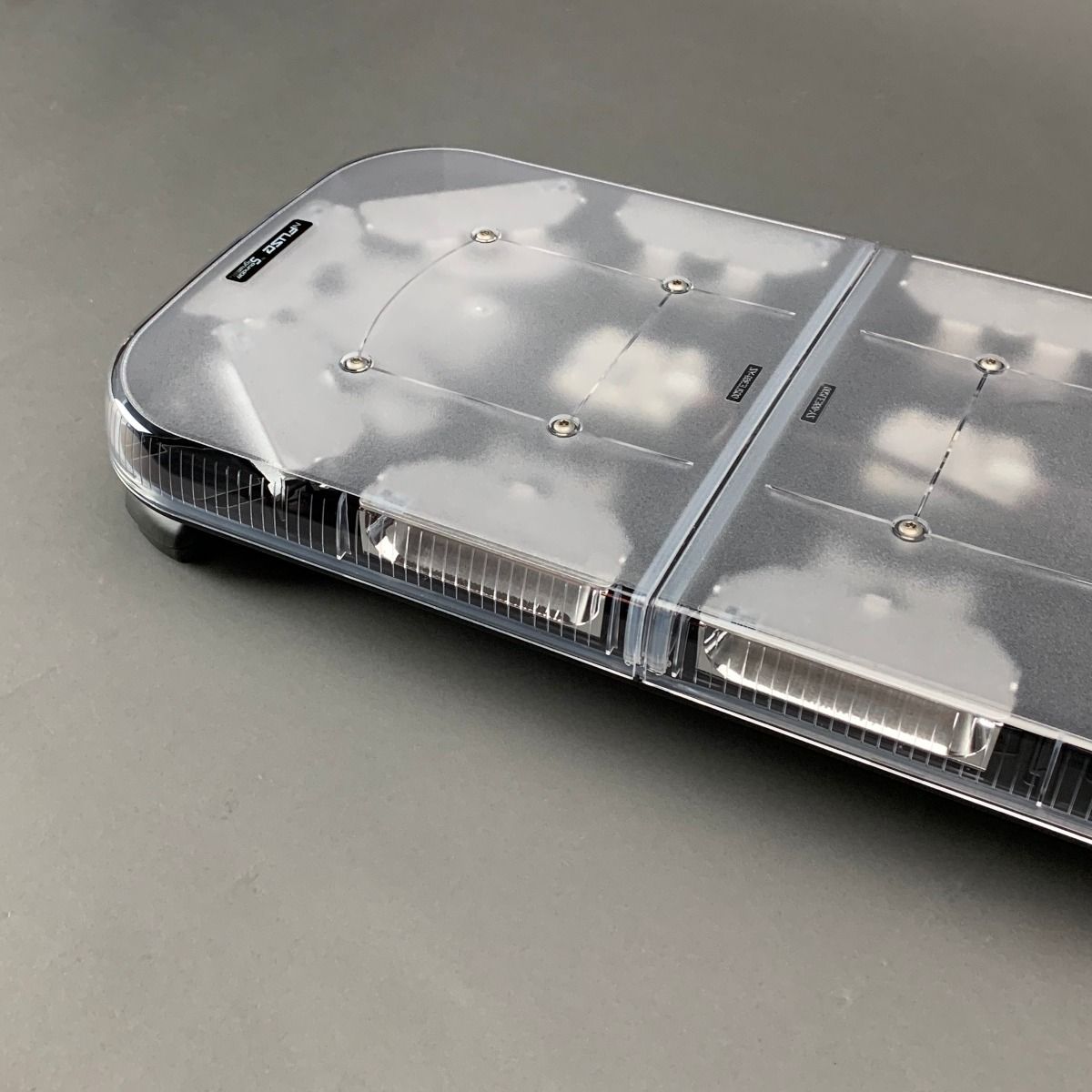

Soundoff Signal nFUSE Lightbar

The SoundOff nFUSE LED Lightbar (ENULB) will be supplied with Clear Lenses. The Lightbar comes in sizes from 36” to 72” and makes use of 6 High Output LED per module per color. LED colors available are Red, Blue, Greeen, Amber and White.

Features:

• Single or dual color capable on every module with independent upper and lower control
• Built-in ambient light sensor that can control when the bar is dimmed or at full intensity
• Compatible with bluePRINT® control system that will connect the lightbar to all necessary sirens, speakers or perimeter lighting
• Arrow control modules can be combined with warning colors for maximum functionality
• Built with a hard-coated lens offering superior protection against scratches, UV rays and harsh chemicals
• Designed with an aluminum base for structural integrity
• Over molded gaskets with sealing ribs that ensure a tight fit to prevent water ingress

Technical Specifications:

INPUT VOLTAGE:

• 10-32 Vdc

OPERATING TEMPERATURE:

• -40°C to +65°C

CURRENT DRAW :

• 24”: 22.2 amps @ 12.8 Vdc | 12.4 amps @ 25.6 Vdc
• 36”: 31.1 amps @ 12.8 Vdc | 17.4 amps @ 25.6 Vdc
• 42": 35.5 amps @ 12.8 Vdc | 19.8 amps @ 25.6 Vdc
• 48": 40.0 amps @ 12.8 Vdc | 22.3 amps @ 25.6 Vdc
• 54": 44.4 amps @ 12.8 Vdc | 24.8 amps @ 25.6 Vdc
• 60": 48.8 amps @ 12.8 Vdc | 27.3 amps @ 25.6 Vdc
• 72": 57.7 amps @ 12.8 Vdc | 32.2 amps @ 25.6 Vdc

STANDBY CURRENT

• Standby current/power (ignition on): 0.012 amps per module / 0.15 watts per module @ 12.8 Vdc
• Standby current/power (ignition off): <0.002 amps / <0.03 watts @ 12.8 Vdc

CIRCUIT PROTECTION

• Reverse Polarity, transient voltage, high temperature, over-voltage

DIMENSIONS

Lightbar Lengths:

• 24" (10 modules / 60.9 cm),
• 36" (14 modules / 91.4 cm),
• 42" (16 modules / 106.7 cm),
• 48" (18 modules / 121.9 cm),
• 54" (20 modules / 137.2 cm),
• 60" (22 modules / 152.4 cm),
• 72" (26 modules / 182.8 cm)

• Height: 3.82"
• Depth: 12.35" cm)

MOUNTS

• Works with all SoundOff Signal mounting options*

*Vehicle-specific options available for purchase separately

CERTIFICATIONS

• SAE J595 Class I Certified,
• SAE J845 Class I Certified,
• California Title 13,
• NFPA 1900 Compliant,
• KKK-1822-F Compliant,
• ECE R10

WARRANTY

Five-year Factory Warranty
