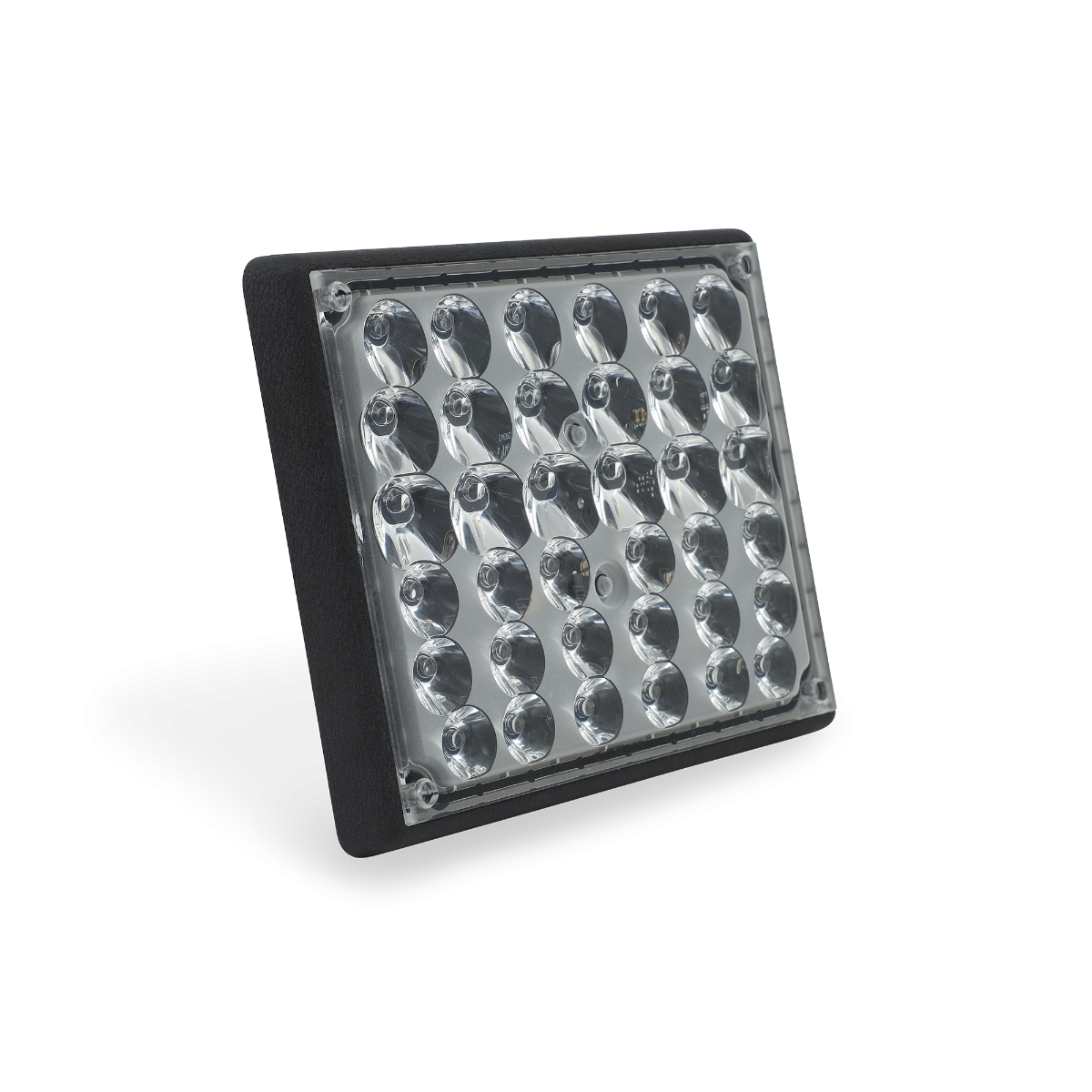

SoundOff Signal mpower 9x7 Scene Light

• High-intensity white illumination perfect for a fire apparatus and ambulance
• Optic-grade silicone lens and weather-resistant enclosure designed to stand up to heat and pressure
• Optimized zone flood lighting provides light where you need it
• Achieve a cohesive and sleek design for your apparatus with our complete line of mpower silicone products
• Same thin profile as the mpower 9x7 warning and stop/tail/turn lights
• Versatile and simple to install
• Highly resistant to UV light and harsh chemicals—achieving greater clarity when exposed to sunlight
• Dimming and low power mode compatibility with bluePRINT®

Tech Specs

• Input Voltage Range
  • 10-32 Vdc

• Amperage Draw
  • 5.0 Amps @ 12 Vdc

• Operating Temperature
  • -40°C to +85°C / -40°F to +185°F

• Optic Type
  • Flood

• LED Colors Available
  • White

• Flash Patterns
  • Steady burn

• Dimensions w/ Bezel
  • 10.4” L x 8.6” H x 1.3“ D (26.4 cm L x 21.8 cm H x 3.3 cm D)

• Dimensions w/o Bezel
  • 9.1" L x 7.3" H x 1.3" D (23.1 cm L x 18.5 cm H x 3.3 cm D)

• Mount Types
  • Stud, screw, or legacy mounts

• IP Rating
  • IP67

• Certifications*
  • SAE J595, CA Title 13, NFPA 1900, KKK-1822-F, FMVSS-108
