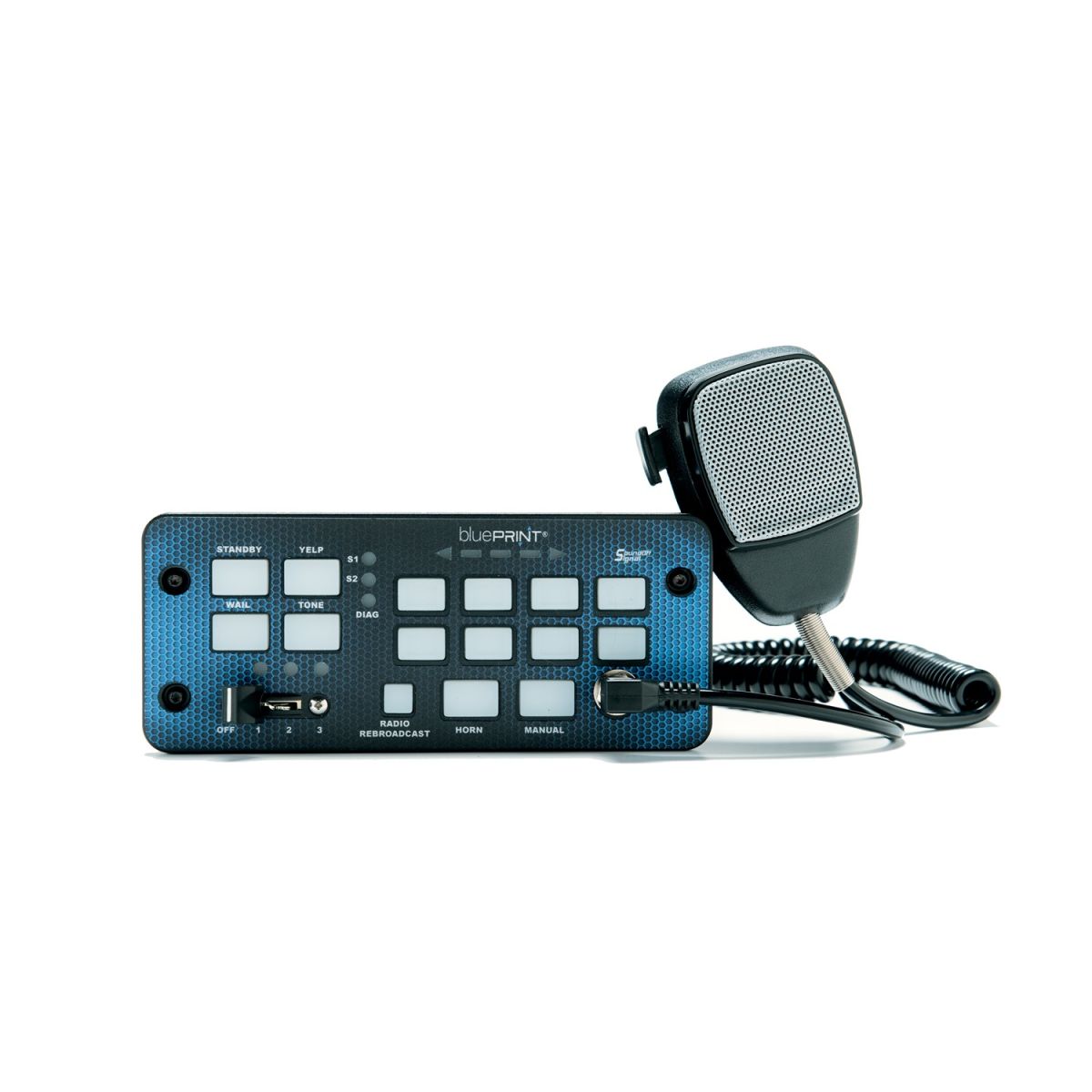

SoundOff Signal bluePRINT 500 Series Handheld Remote Control System, 10-16v - 100 watt single-tone

An all-in-one, fully customizable system for controlling visual and audio communication. Its advanced
programmability, seamless integration and intuitive controls equip operators for clear communication while
focusing on the task at hand.

Features
Built-in bluePRINT Functionality

Load Shed
Matrix programming
Scalable architecture allows the addition of up to 40 discrete inputs, 24 OBD inputs and 50 outputs
Control of two lightbars without the need for an external breakout box, or control additional lightbars using external BOBs
USB programmability
With the SoundOff Signal Central bluePRINT software app, standard siren is fully expandable and customizable. Also allows real time diagnostics and firmware updates

Enhanced I/O Capability
20 outputs
15 of the outputs are solid state, which can be flashed/dimmed and include diagnostic and self-protection features
Up to 75 amps total internal switching

Additional
NEW FEATURE bluePRINT Announce pre-recorded message playback
100 watt dual tone and 200 watt versions
New mechanical siren tones
Radio rebroadcast input
Allows simultaneous use of two control panels with independent microphone inputs
Improved audio quality with high capacitance internal filtering
Available with Rotary, Push Button or Handheld Control Panels

Tech Specs
Input Voltage Range
10-16 Vdc

Watts
100
200 (two speakers required)

Dimensions (Console)
Console Faceplate - H 3.17" (8.5 cm) x W 7.54" (19.15 cm)
Amplifier/Relay - H 2.62" (6.65 cm) x W 7" (17.78 cm)
Cut-out - H 2.81" (7.14 cm) x W 7.10" (18.034 cm)

Dimensions (Handheld)
Panel - H 3.51" (8.92 cm) x W 6.98" (17.73 cm) x D 1.17" (2.98 cm)
Amplifier/Relay - H 2.62" (6.66 cm) x W 7" (17.78 cm) x D 7” (17.78 cm)

Dimensions (Remote)
Handheld Panel - H 3.13" (7.95 cm) x W 7.5" (19.05 cm) x D 1.25" (3.175 cm)
Amplifier/Relay - H 2.62" (6.66 cm) x W 7" (17.78 cm) x D 7" (17.78 cm)

Warranty
Five-year

Certifications
SAE J1849, CA Title 13
