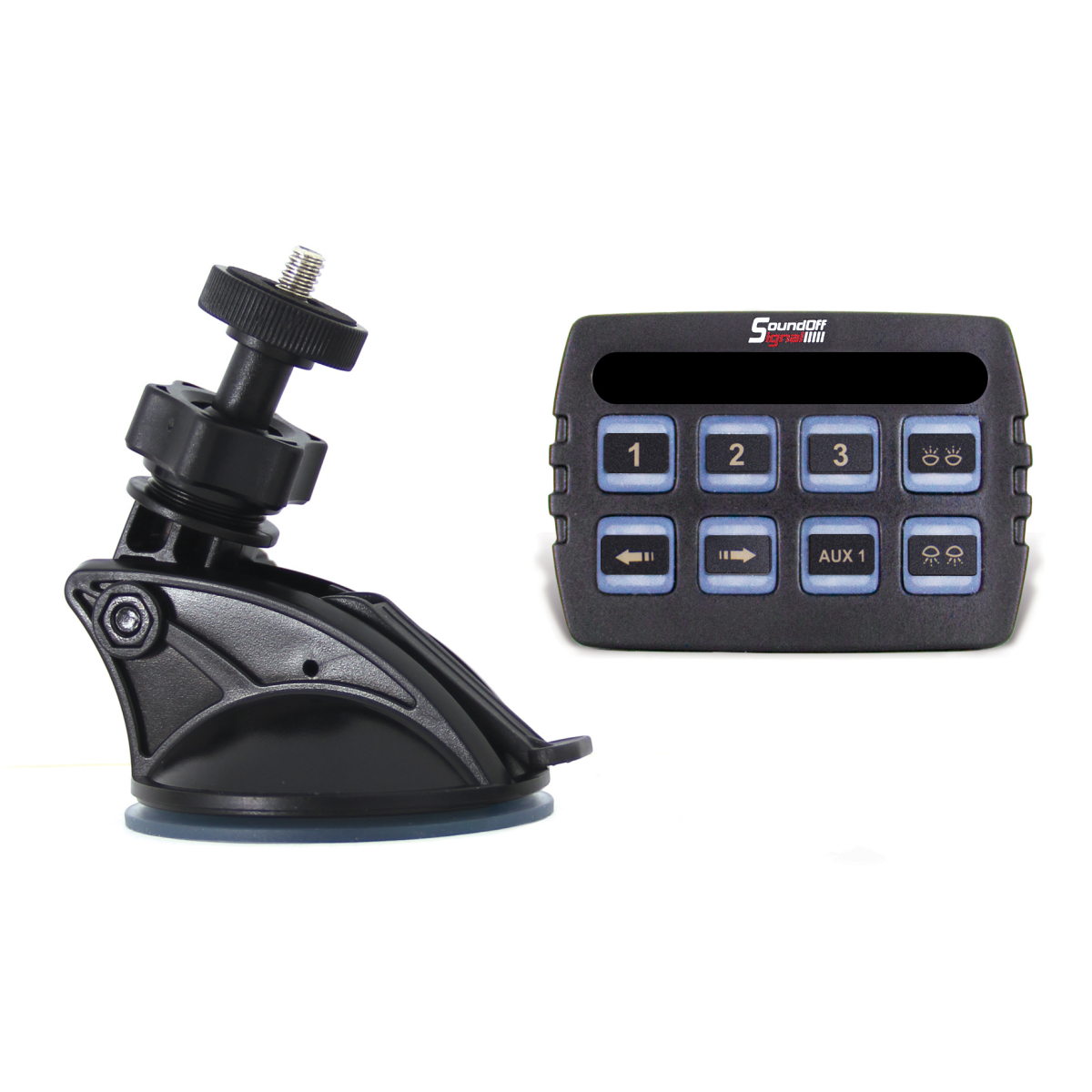

SoundOff Signal 800 Series Multi-purpose Control Panel, Low Current and Switch Module w/ 8 Button Programming and Directional Arrow Function; includes 35 selectable icon stickers

The SoundOff 800 Series Multi-purpose Control Panel is an eight switch control panel with a directional traffic arrow function. The panel is back lit with rubber touch buttons .Each button is fully programable and can be set as either a on / off or momentary switch. The control panel comes with 35 selectable stickers to label your panel as required. The SoundOff 800 Series Multi-purpose Control Panel has three 10amp output and five 0.2 amp outputs for powering or activating devices .

Features:

• Eight button programming and directional arrow function.
• Eight switch control panel with three 10 amp and five 0.2 amp outputs for auxiliary device power or function activation.
• Back lit rubber touch buttons.
• 35 selectable icon stickers to clearly label panel.
• Input Voltage : 10-24 Vdc .
• 32 amps maximum load.
• Dimensions of Relay Box: 3.8" L x 2.7" H x 1" D.
• Dimensions of Controller: 4.4" L x 3.5" H x 1.05" D.

SoundOff One Year Warranty
