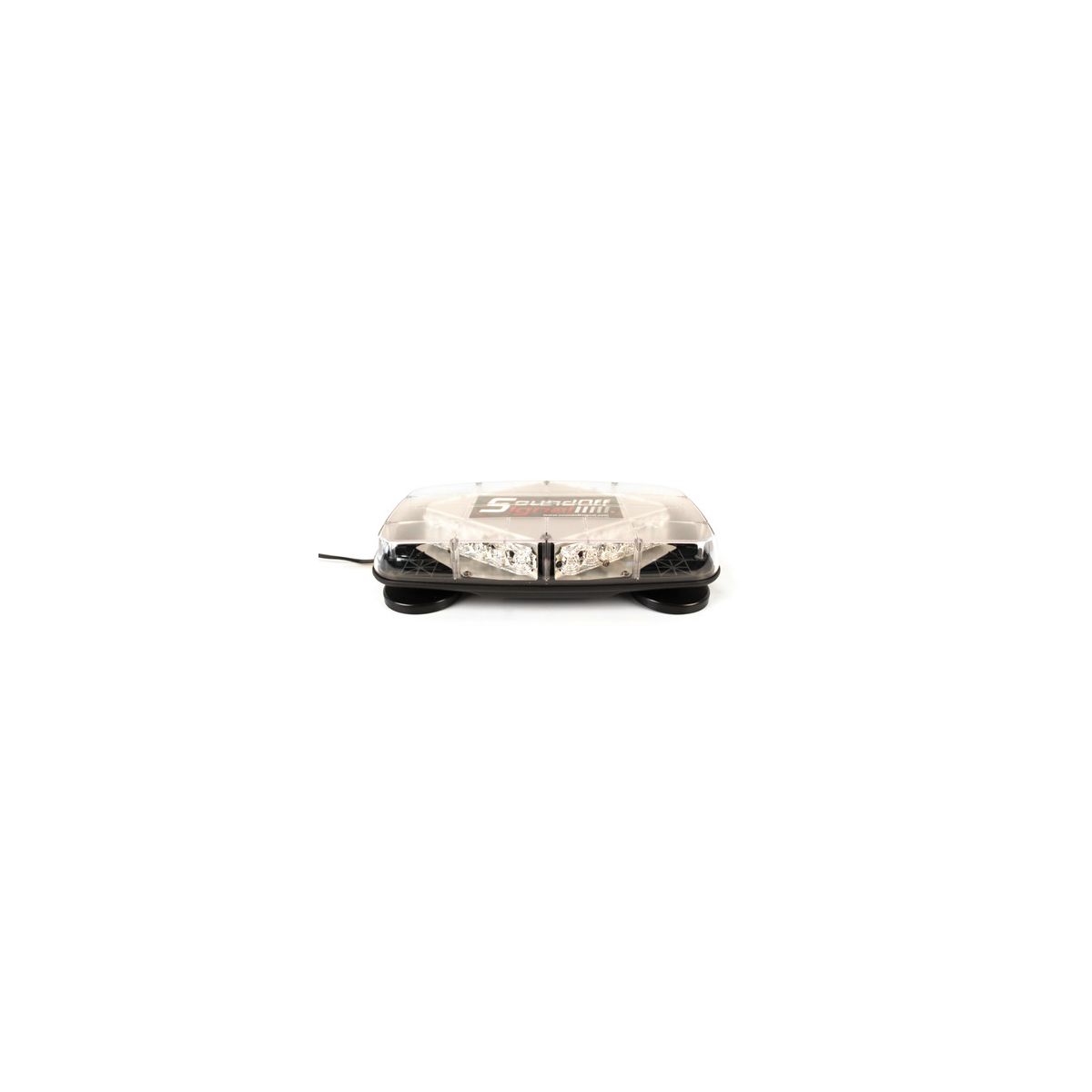

The Magnetic Mount version is shown in the photos.
The SoundOff Pinnacle Mini Lightbar features SoundOff's exclusive 'Fusion Technology', an extreme, wide angle optic technology that disperses an even distribution of light with a super wide angle output. Scratch resistant, durable polycarbonate housing is weatherproofed for exterior use. Available as a Magnetic Mount or Permanent Mount, perfect for volunteer emergency vehicles. Pinnacle Mini Lightbar has a Five Year No Hassle Warranty.
Features:
- Delivers 360 degrees of powerful & bright output with exclusive 'Fusion Technology' optics.
- Features 28 Flash Patterns.
- Flash Patterns are easily selected with Cigar Plug with a 3-position rocker switch.
- Simply press the down arrow to advance to the pattern desired and then turn the lightbar on.
- Non-volatile memory recalls last flash pattern used upon power up.
- Available in Amber, Blue, Red and White LEDs in solid or split colors.
- Scratch resistant, durable polycarbonate housing is weatherproofed for exterior use.
- Available as a Magnetic Mount or Permanent Mount.
- Magnetic Mount includes 4 extra strong magnets each with an 85 lb. pull each to prevent the bar from slipping or moving.
- Magnetic Mount includes a cigar style 12 volt plug with a 3-position rocker switch for easy pattern advance with a 10 foot cord for quick installation.
- Magnetic Mount includes clear protective disks to cover the magnets and prevent scratching of the vehicle paint.
- Permanent Mount are permanently affixed to the roof of the vehicle and require drill holes to install.
- Permanent Mount includes a 10 foot cable with bare wire ends for hard wire installation. Switch NOT included.
Specifications:
- # of Flash Patterns: 28
- Input Voltage: 10 - 16 VDC
- Current Draw: 0.5 amps average @ 12.8 VDC
- # of LEDs: 24 Gen3 LEDs
- Operating Temp.: -40º to +65º C
- Dimensions Bar Only: 14.25' L x 8.27' W x 1.90' H
- Dimensions Magnetic Mount: 2.78' overall height w/ 0.87' clearance
- Dimensions Permanent Mount: 2.93' overall height w/ 1.05' clearance
SoundOff Signal 5 Year No Hassle Warranty.
WARNING: Under no circumstance should a magnetic mount light be used on a vehicle in motion. Doing so will violate all warranties and eliminate the possibility of returns or exchanges.
