SoundOff mPower Exterior Full Size Lightbar

SoundOff
SKU: EMPLB
$4,391.00
$2,546.78
You save: $1,844.22 (42%)

Product Options:

Description

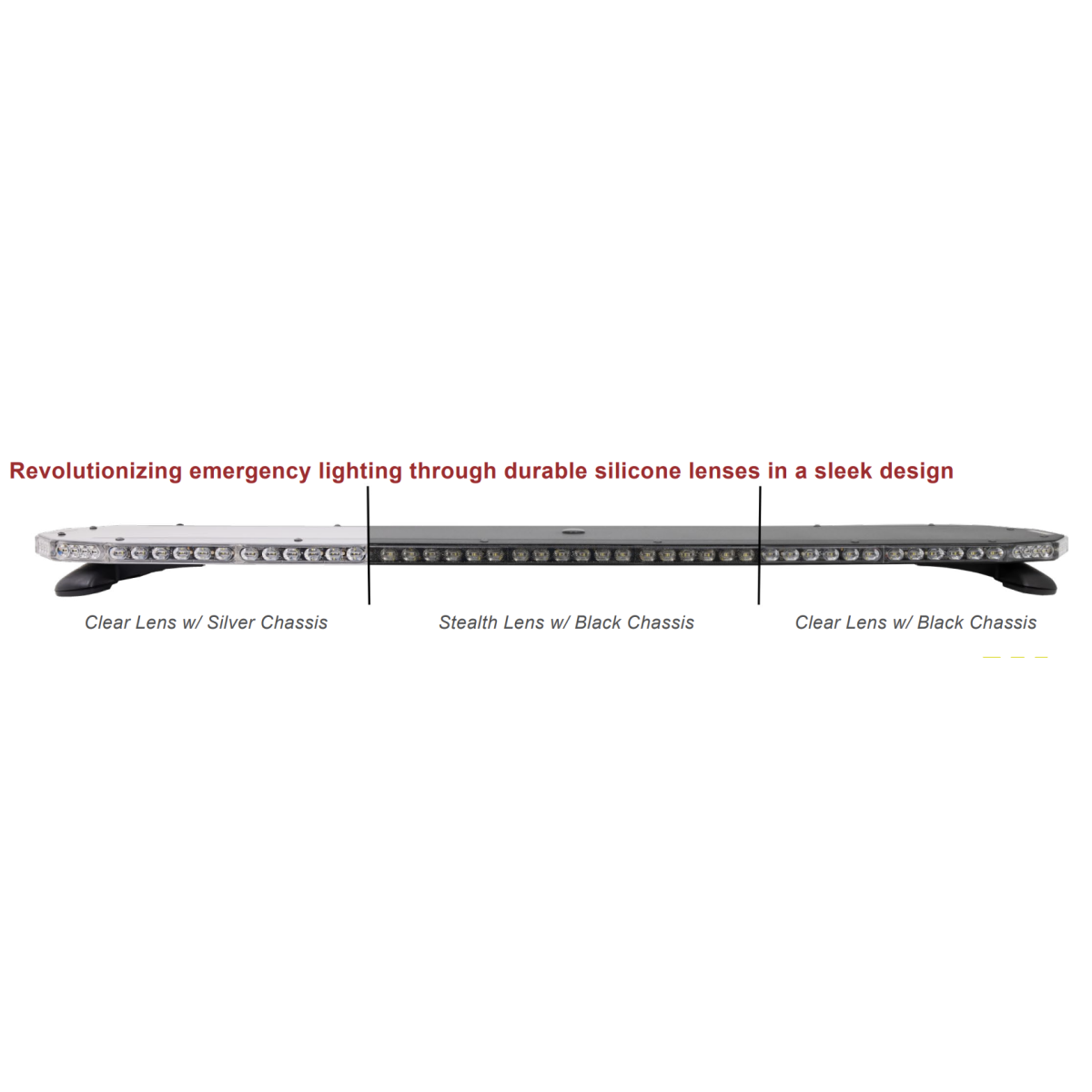

The SoundOff mPower Exterior Full Size Lightbar at only 1” thick, is 50% thinner than its leading competitors. The 48 Inch mpower lightbar model provides 50% more LEDs within its inboard modules than comparable competitive models. Inboard modules are available in single color with 6 or 8 LEDs, dual color with 12 LEDs, or tricolor with 18 LEDS. Corner modules are offered in single color with 8 or 16 LEDs, dual color with 16 LEDs, or tricolor with 24 LEDs.

SoundOff Signal collaborated with Dow Corning® to develop Clear Duty® optical module design. The Clear Duty molded one-piece housing and optic design delivers advantages over conventional polycarbonate lenses: a smaller footprint with maximized candela output, Greater resistance to gravel pitting, scratching or cracking, Improved sealing to prevent water from entering light, and Higher UV and thermal stability to prevent lens from yellowing over time.

mPower lightbars with multi-color modules (dual or tricolor) that include white LEDs are capable of providing a full 360 degrees of intense scene lighting. Takedowns can be configured as single, dual or tricolor for maximum functionality. Alley lights can be configured as single, dual or tricolor to maximize intersection awareness. Discrete rear-arrow control modules can be combined with warning colors for maximum functionality.

To order this lightbar contact us by phone at 888-959-0911 (8AM - 4:30PM PST.) and let our staff assist you with a custom configuration built to meet your needs.

NOTE: Light bars come with clear outer domes unless otherwise specified.

Features:

  • At only 1” thick, mpower is 50% thinner than its leading competitors.
  • The 48” lightbar model provides 50% more LEDs within its inboard modules than comparable competitive models.
  • SoundOff Signal collaborated with Dow Corning® to develop Clear Duty® optical module design.
  • Clear Duty molded one-piece housing and optic design delivers advantages over conventional polycarbonate lenses:
    • A smaller footprint with maximized candela output.
    • Greater resistance to gravel pitting, scratching or cracking.
    • Improved sealing to prevent water from entering light.
    • Higher UV and thermal stability to prevent lens from yellowing over time.
    • Inboard modules are available in single color with 6 or 8 LEDs, dual color with 12 LEDs, or tricolor with 18 LEDS.
    • Corner modules are offered in single color with 8 or 16 LEDs, dual color with 16 LEDs, or tricolor with 24 LEDs.
  • Inboard and corner modules are were designed to be continuous in order to eliminate lighting gaps.
  • Lightbars with multi-color modules (dual or tricolor) that include white LEDs are capable of providing a full 360 degrees of intense scene lighting.
  • Takedowns can be configured as single, dual or tricolor for maximum functionality.
  • Alley lights can be configured as single, dual or tricolor to maximize intersection awareness.
  • Discrete rear-arrow control modules can be combined with warning colors for maximum functionality.
  • Windows based PC application simplifies programming and enhances configurability and control.
  • Use of PC application in conjunction with SoundOff Signal sirens simplifies install with “plug and play” RJ45 capability; save configuration time and enhance configurability by directly mapping siren buttons to lightbar functions.
  • Other user configurable options include: cruise mode, front/rear/corner cutoff inputs, nighttime manual dimming, multiple flash patterns, steady burn and stop/tail/turn.
  • Auto-dimming
  • Ten-year warranty on UV lens discoloration.

Specifications:

INPUT VOLTAGE RANGE: 9-16 VDC

WATTAGE

  • Inboard Warning Module: < 5.9 Watts
  • Corner Module (2-3' mPower modules): < 11.6 Watts
  • Alley: < 5.9 Watts

CURRENT DRAW

  • Inboard Warning Module: < 1 Amp
  • Corner Module (2 3' mPower modules): < 1.9 Amps
  • Alley: < 1 Amp

FLASH PATTERNS

  • Warning: 66, Takedown/Alley: 25 and Arrow L/C/R: 11

OPERATING TEMPERATURE: -40° C to + 65° C / -40° F to +149° F

DIMENSIONS

Length - 8 Module Lightbar: 44.2' (112 cm)
Length - 9 Module Lightbar: 48.2' (122 cm)
Length - 10 Module Lightbar: 52.7' (134 cm)

Height - All Modules: 1.1' (2.7 cm)

Depth - All Modules: 10.6' (27 cm)

CERTIFICATIONS

SAE J845 Class 1 certified (red, blue, amber or white)
SAE J595 Class 1 certified (red, blue, amber or white)
CA Title 13 Class B certified (red, blue or amber)

SoundOff Five Year Warranty (Ten Year on UV lens discoloration)
