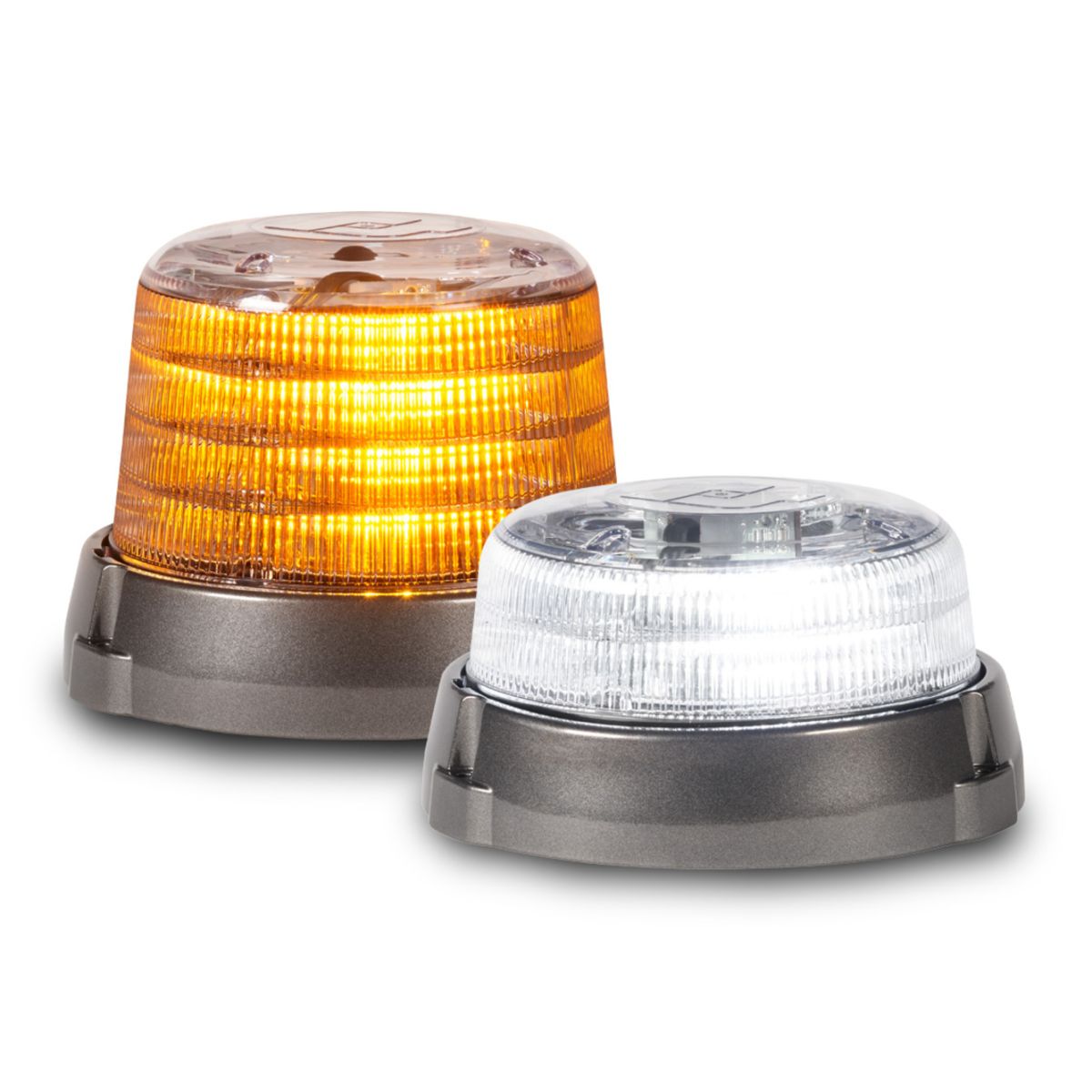

Federal Signal Pro LED Beacon

The Pro LED Beacon is available in tall and short dome versions in single or dual color utilizing the following colors – Amber, Blue, Green, Red and White. The e-coated and powder painted metal base of the Pro LED Beacon has a built-in permanent/1-inch pipe mount that allows for flexibility when mounting. The Pro LED Beacon is an ideal warning solution for work trucks and fire apparatuses.

 The Pro LED Beacon provides an effective warning signal that meets SAE Class 1 (Amber, Blue, Red, White), Title CAC 13 (Amber, Blue, Red) and NFPA Upper (Amber and Red). Additionally, the Pro LED Beacon has FSLink™ syncing technology that will allow for Pro LED Beacons and other Federal Signal products with FSLink to sync or alternately flash patterns to create a unified look.
Each Pro LED Beacon has (25) built-in flash patterns, low power function, and two flashing modes. Select models are available with an auto-dimming function. Branch guards for both the tall and short dome versions are available as an accessory.

Features:

• Single and dual color versions
• Short and tall versions

Tall – 7.24" diameter x 5.24" height

Short – 7.24" diameter x 3.62" height

• FSLink™ syncing technology
• (25) selectable flash patterns
• Low-power functionality
• Built-in auto-dimming models available
• Branch guard, option
• Multi-voltage, 12/24 VDC
• Built-in permanent/1-inch pipe mount metal base

Specifications:

• Voltage: 12/24 VDC
• Current Draw: 2 A (average) - 4 A (max)
• LED Count: 300TMP=36 | 320TMP=72 | 300SMP=24 | 320SMP=48
• LED Color Options: Amber, Blue, Green, Red, White
• Dome Color Options: Amber, Blue, Clear, Green, Red
• 300TMP/320TMP Physical Dim. (D x H) 24 in (18.38 cm) x 5.24 in (13.3 cm)
• 300SMP/320SMP Physical Dim. (D x H) 24 in (18.38 cm) x 3.62 in (9.19 cm)
• 300TMP/320TMP Ship Weight: 3.25 lbs (1.5 kg)
• 300SMP/320SMP Ship Weight: 3 lbs (1.4 kg)

Federal Signal 5 year warranty
