Federal Signal MicroPulse C Series

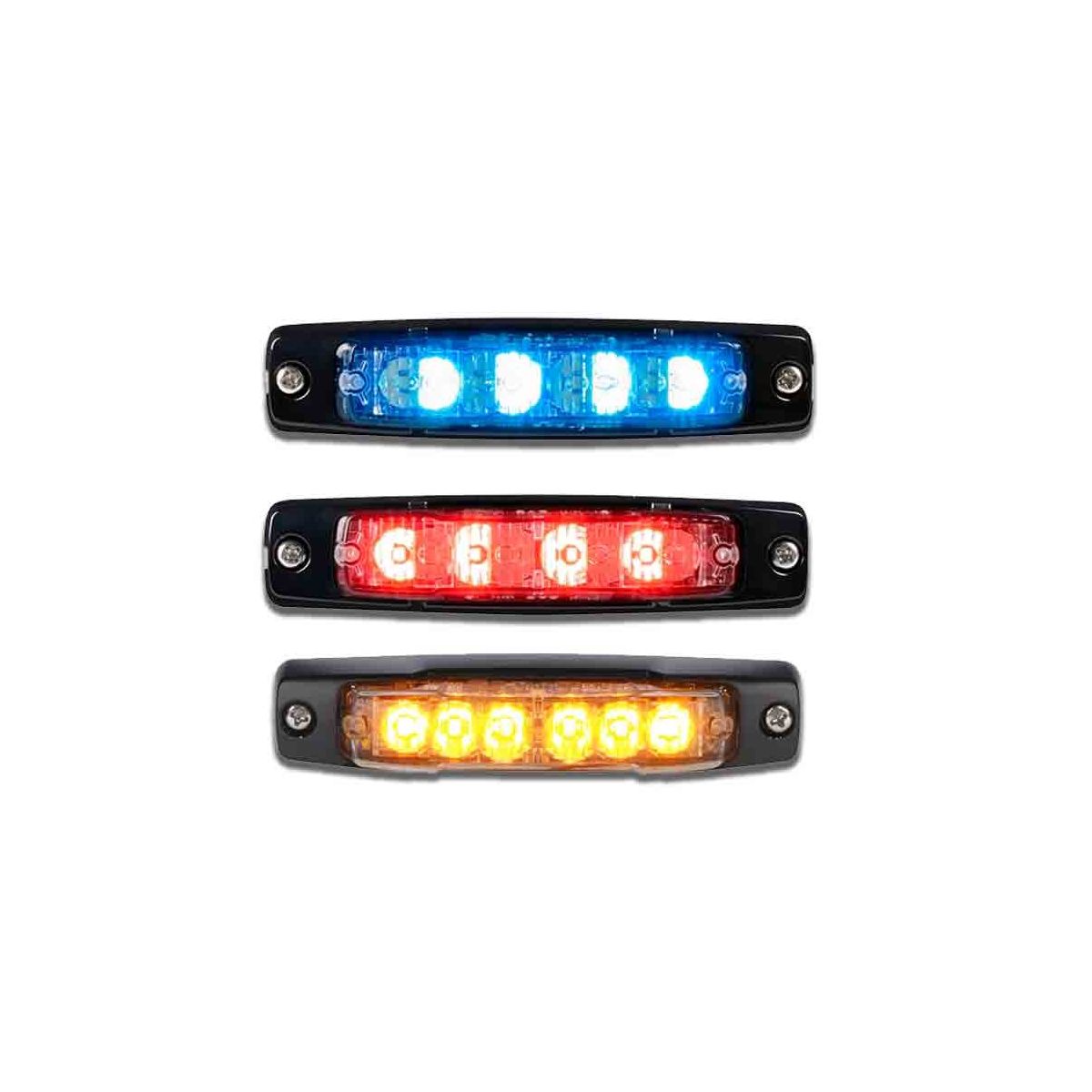

The Federal Signal MicroPulse C Series 6-LED Warning Light takes the brightness of the MicroPulse family and packs it into an exstremely small housing. This light is available in single color and split color models. There are 27 user selectable flash patterns including Steady-Burn and Random. Each model comes with black surface mount bezel for surface mounting, and stud mounting hardware for easy grille installation on the 2016-17 Ford Police Interceptor Utility.

Features:

• Single-color models contain 6 LEDs
• Split-color models contain 3 LEDs of each color (6 total)
• 27 flash patterns including Steady and Random
• Each model comes with black surface mount bezel and stud-mount
• Stud mount included for easy grille installation on the 2016-17 Ford Police Interceptor Utility

Wiring:

• Red = +12 VDC
• Black = Chassis Ground
• Yellow = Sync and pattern select

Specifications:

• Operating Voltage: 12 VDC
• Current Draw = 0.7 Amps at 12 VDC
• Operating Temperature is -40°C to +80°C
• All models are IP67 rated

Optical Compliance:

• MPSC-A: SAE J845 Class 1, SAE J595 Class 1, CA Title 13 Class B
• MPSC-B: SAE J845 Class 2, SAE J595 Class 1, CA Title 13 Class B
• MPSC-R: SAE J845 Class 1, SAE J595 Class 1, CA Title 13 Class B
• MPSC-W: SAE J845 Class 2, SAE J595 Class 1, CA Title 13 (n/a)

CISPR 25 Compliance:

• Radiated emissions = Class 5
• Conducted emissions = Class 5

Dimensions:

• Surface Mount: 4.1' L x 0.9' W x 0.94' D
• Stud Mount: 3.3' L x 0.7' W x 0.94' D

Federal Signal Three Year Warranty
