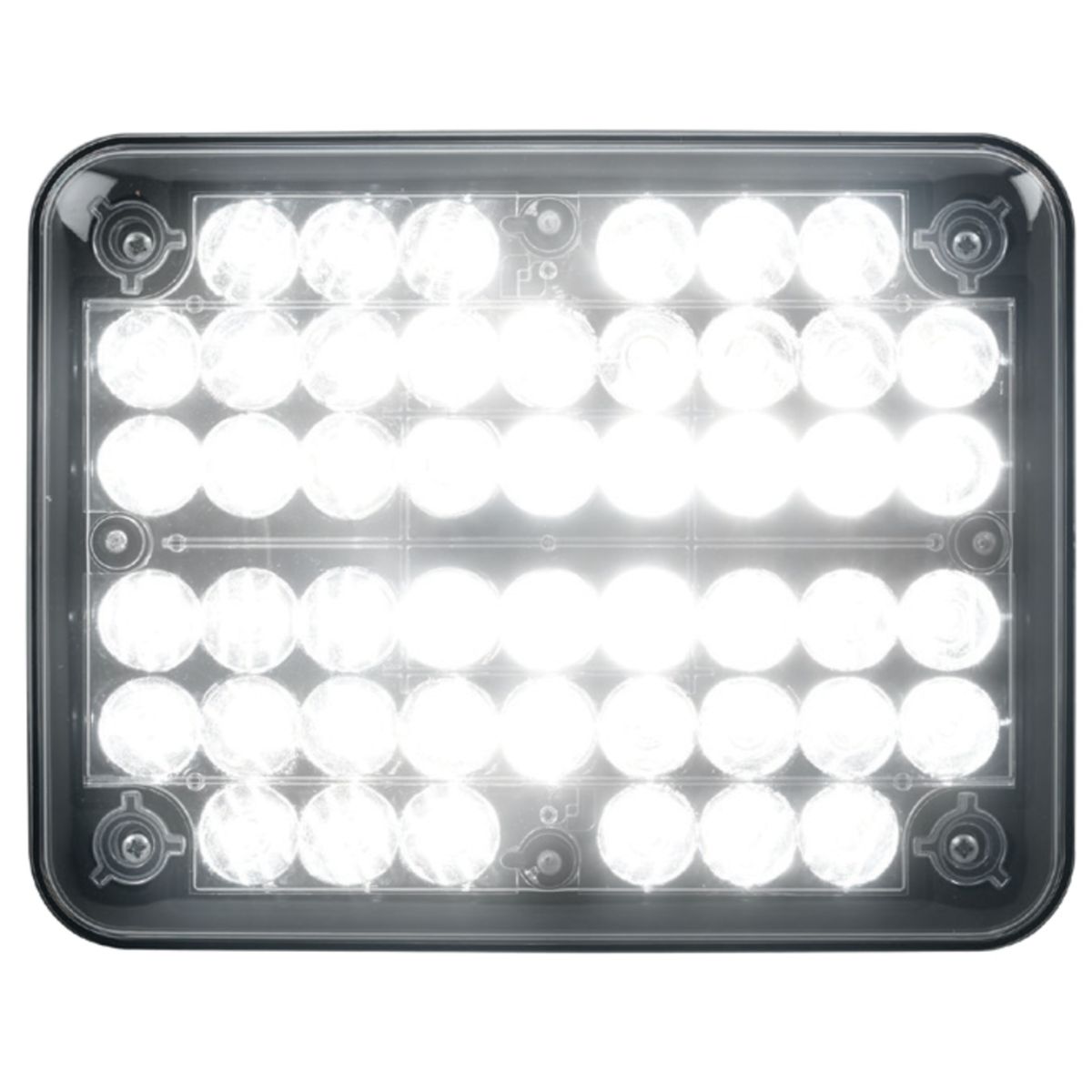

Federal Signal LEDTCL97 Traffic Clearing Light

Alert Drivers Faster
Federal Signal’s LED Traffic Clearing Light (TCL) is designed to bring attention to drivers as a fire apparatus or ambulanceis approaching from the rear of their vehicle. The LED TCL’s optics and unique sequence of flash patterns direct light to the driver’s rear-view mirror warning them of the emergency vehicle.

LED TCL and perimeter warning lights work together to help warn roadway traffic. While perimeter lights provide 360-degree of warning light around the emergency vehicle, the LED TCL produces 250+ feet of directional light to the front of the emergency vehicle.

Specifications

• Current Draw 3.0 A/1.5 A (6x4) – 7.0 A (9x7)
• Input Voltage 12/24 VDC (6x4) - 12 VDC (9x7)
• Operating Temperature Range -40˚C to 80˚C
• Physical Specs. (HxWxD) 6x4 – 4.15 in (10.5 cm) x 6.56 (16.7 cm) x 1.67 in (4.2 cm)
• 9x7 – 7.15 in (18.1 cm) x 9.16 (23.3 cm) x 1.66 in (4.2 cm)
• Ship Weight 6x4 – 3.6 lbs (1.6 kg)
• 9x7 – 2.0 lbs (0.9 kg)
