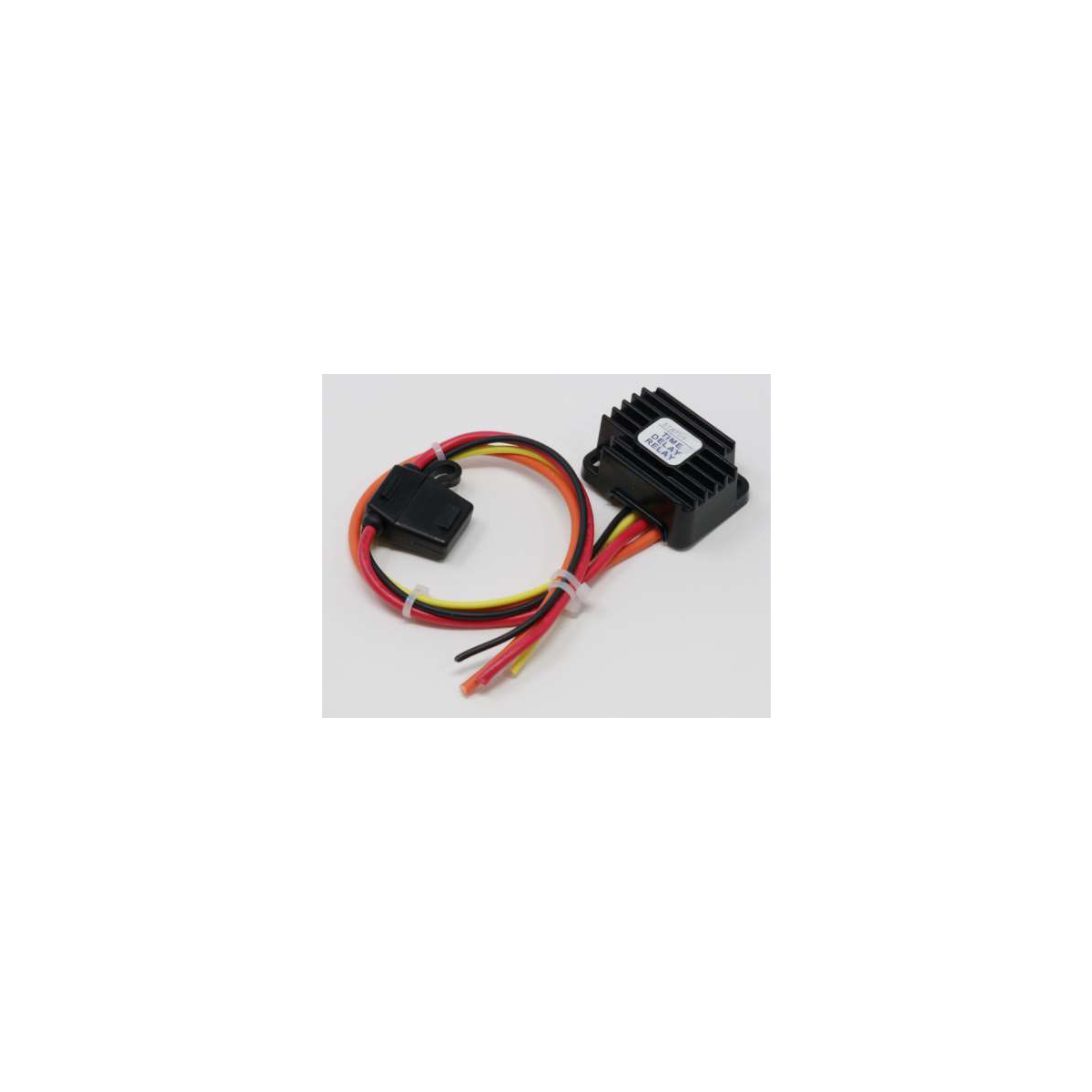

EGIS 5601B 30 Amp Power Tamer

The EGIS 5601B PT (Power Tamer) Series Time Delay Relay eliminates dead batteries caused by forgotten electrical equipment such as data terminals and radios. Digital design provides reliability and dependability over wide temperature and voltage ranges. Reliable voltage sensing knows when the engine is running. Low standby current is important when the vehicle is parked for extended times. Leading edge FET technology eliminates relays for most applications.

This self-contained product features both voltage sensing and auto-ignition sensing options for activation. It also features programmable times ranging from 5 seconds to 8 Hours. Low voltage disconnect is at 11 volts for 15-seconds to filter voltage dips caused by turning on the light bar, engine starting, etc.

Features:

• Solid State
• Digital Design
• Self-contained (Requires no external solenoids)
• 30 Amp Service
• Low 3-Milliamp standby current
• Automatic Voltge Sense
• 17 Volt Over Voltage Protection
• 10.5 Volt Low Voltage Protection
• Programmable delay from 5 seconds to 8 hours
• Fully Encapsulated Waterproof Construction
• Very Compact - Mounts Anywhere
