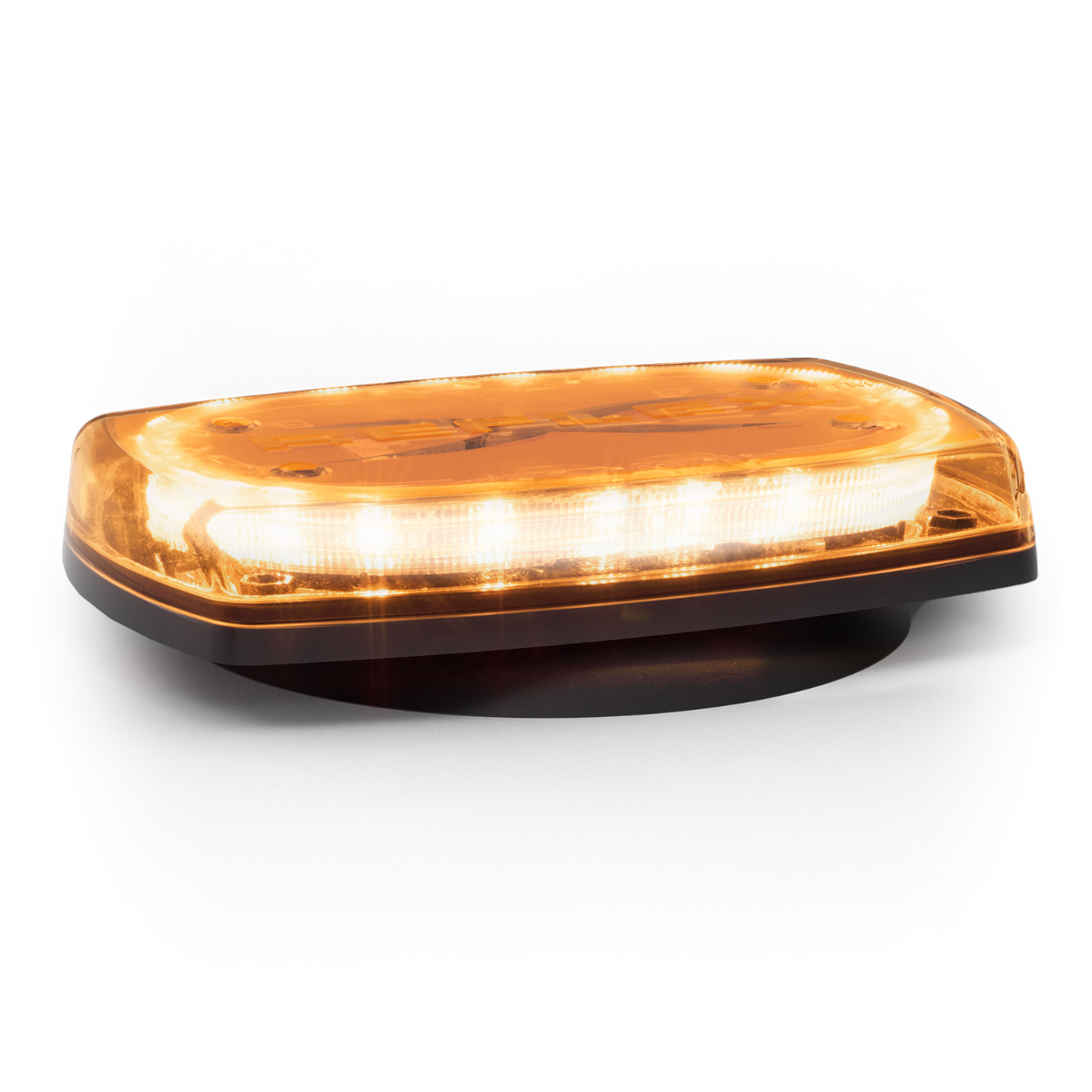

ECCO 5540 Series Reflex Minibar

ECCO’s 5540 Series LED minibar is a compact and powerful rooftop warning light providing 360 degrees of amber warning. These 10” Reflex® minibars feature 35 single-color or 91 dual-color flash patterns and come in permanent or vacuum-magnet mounting options. Vacuum-magnet models are available in two versions, cigarette plug or AC plug, and provide on/off control and flash pattern selection from inside the cab of the work truck or commercial vehicle. SAE Class I rating provides maximum brightness for on-highway and off-highway applications, all backed by a 5-year no-hassle warranty.

Features:

• Four LED reflector modules, each comprising 6 (single-color) or 12 (dual-color) LEDs provide high intensity light output
• Flash Patterns: 35 (single-color) and 91 (dual-color) flash paterns
• Available in 4 bolt or vacuum-magnet mounting options (-VM comes with a cigarette plug and -VMAC comes with an AC plug)
• Polycarbonate base and low-profile lens

Specifications:

• Dimensions: 1.5” H x 10.0” L x 6.75” D | 38mm H x 254mm L x 171mm D
• Voltage: 12-48V
• Current Draw: 3.4A ampere draw
• Temperature Range: -22°F to +122°F (-30°C to +50°C)
• Weight: 2.0 lbs
• Certifications: SAE Class I, CA T13, CE, UKCA, R10, R65, IP65, IP69K, RoHS, Reach

ECCO 5 Five Year Warranty
