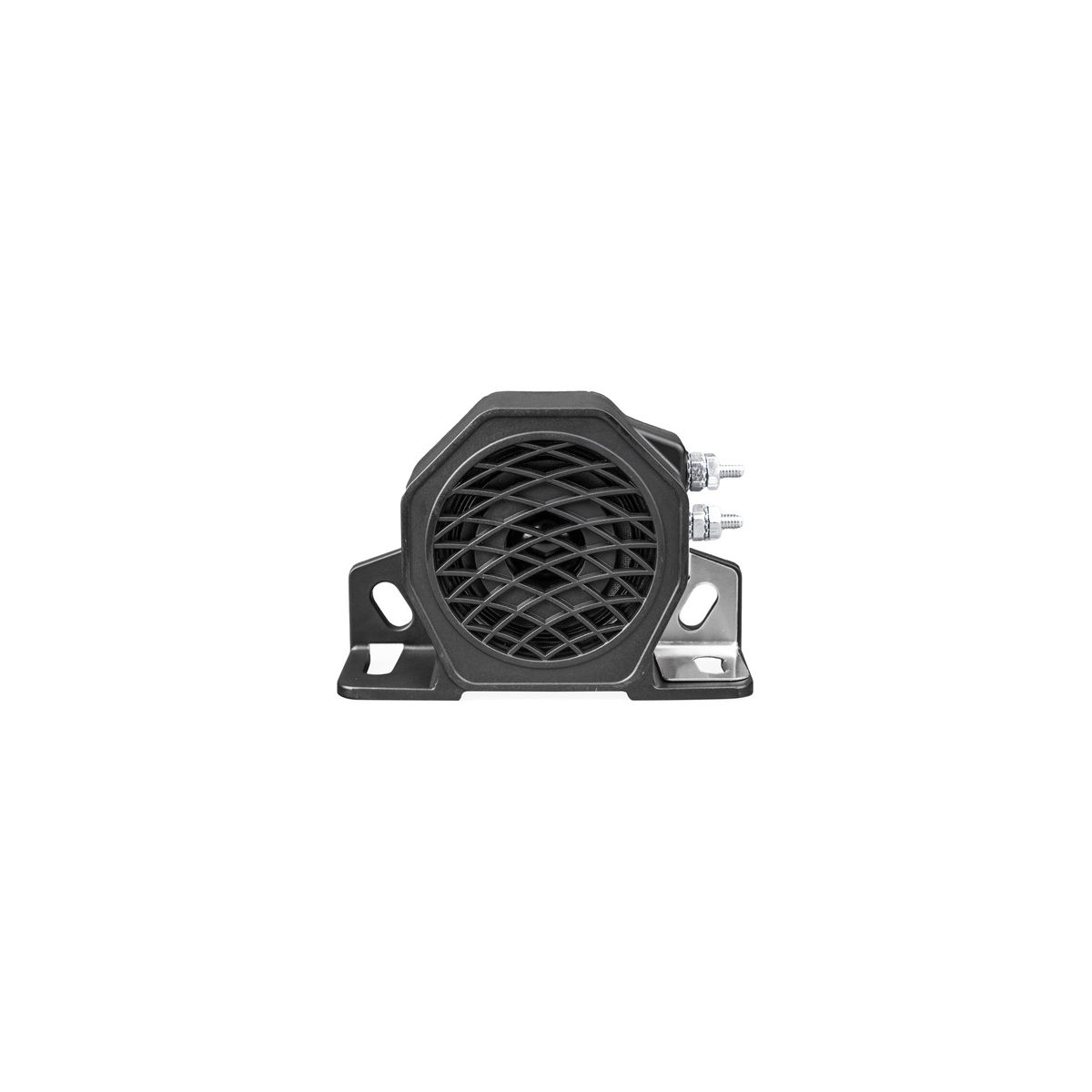

ECCO 500 Series Backup Alarms

The ECCO 500 Series Backup Alarms is ECCO's most compact and popular line of back-up alarms. This series provides a cost effective warning solution with ECCO quality and reliability. A glass-filled nylon housing with epoxy-encapsulated electronics provide exceptional durability and protection against moisture, dust and vibration.

Features

• Compact size and universal mounting bracket maximizes location options.
• Self grounding (negative side ground strap), except 575 which can be positive or negative ground.
• Sealed in epoxy for protection against dust, moisture, and vibration.
• Temperature Range: -40°F to +185°F (-40°C to +85°C)

Part Number Specifications

• Part Number: 510
• Decibels: 97 dB(A)
• Voltage: 12 VDC
• Current: 0.2 Amps
• Connection: 8-32 uni stud connection
• Approvals: SAE Type C, CE, R10, UL, AMECA, IP65

• Part Number: 520
• Decibels: 97 dB(A)
• Voltage: 12-24 VDC
• Current: 0.2 Amps
• Connection: 8-32 uni stud connection
• Approvals: SAE Type C, CE, R10, UL, AMECA, IP65

• Part Number: 530
• Decibels: 102 dB(A)
• Voltage: 12-24 VDC
• Current: 1.0 Amps
• Connection: 8-32 uni stud connection
• Approvals: SAE Type F, CE, R10, UL, IP65

• Part Number: 575
• Decibels: 107 dB(A)
• Voltage: 12-24 VDC
• Current: 0.9 Amps
• Connection: 16 AWG blunt cut wires
• Approvals: SAE Type B, CE, R10, UL

• Part Number: 585
• Decibels: 97 dB(A)
• Voltage: 12-48 VDC
• Current: 0.1 Amps
• Connection: 8-32 uni stud connection
• Approvals: SAE Type C, CE, R10, UL, AMECA

ECCO 2 Year Warranty
