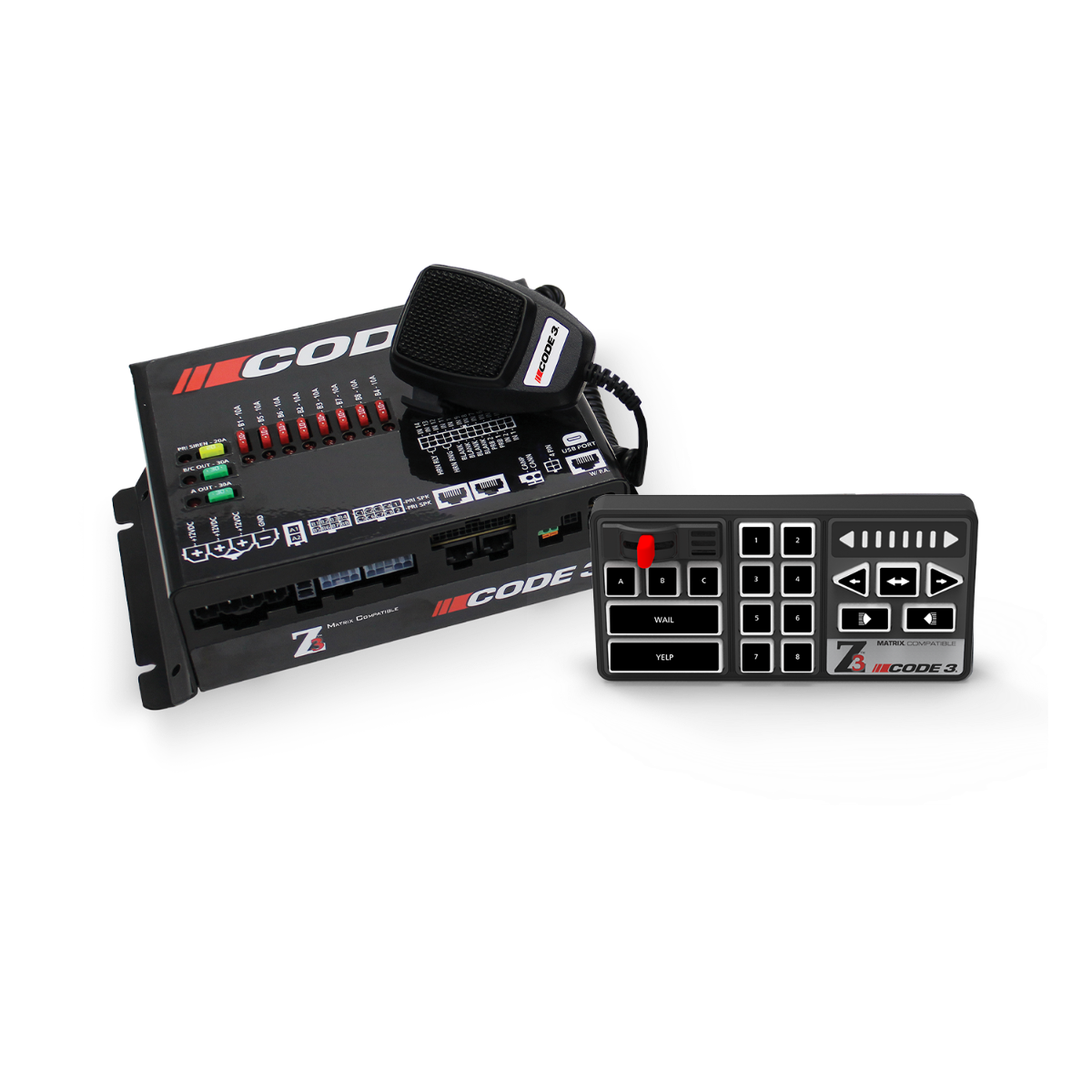

Code 3 Z3S Matrix® Siren, Push Button

The Z3S™ Siren’s intuitive design efficiently integrates the unit’s emergency warning systems. The controller has three distinct zones: sirens and primary lighting, auxiliary devices and traffic or warning function. Adjust backlight brightness and public address microphone to accommodate various light and noise conditions. Additional features include a built-in battery voltage check, sleep mode timer and configurable buttons to control auxiliary or siren functions via Matrix® software.

Features:

• 18 configurable outputs; 2 – 20A, 8 – 10A, 8 – 500mA
• 13 configurable inputs
• Push button or rotary control head
• Customized patterns available to be programmed for ArrowStik® through Matrix software®

Specifications:

• VOLTS | AMPS: 12V | 1.9A
• WATTS: 200W / 300W
• DIMS: 3.3” H x 6.8” L x 1” D | 84mm H x 172mm L x 27mm D (control head)

4” H x 9.75” L x 6.8” D | 100mm H x 248mm L x 172mm D (amplifier)

• CERTS: J1849, CA T13, R10
• APPROVAL: J1849, CA T13, R10
• DEPTH: 6.8”
• HEIGHT: 4”
• VOLTAGE: 12 V
• WARRANTY: 5 YEAR
• WIDTH: 9.75”
