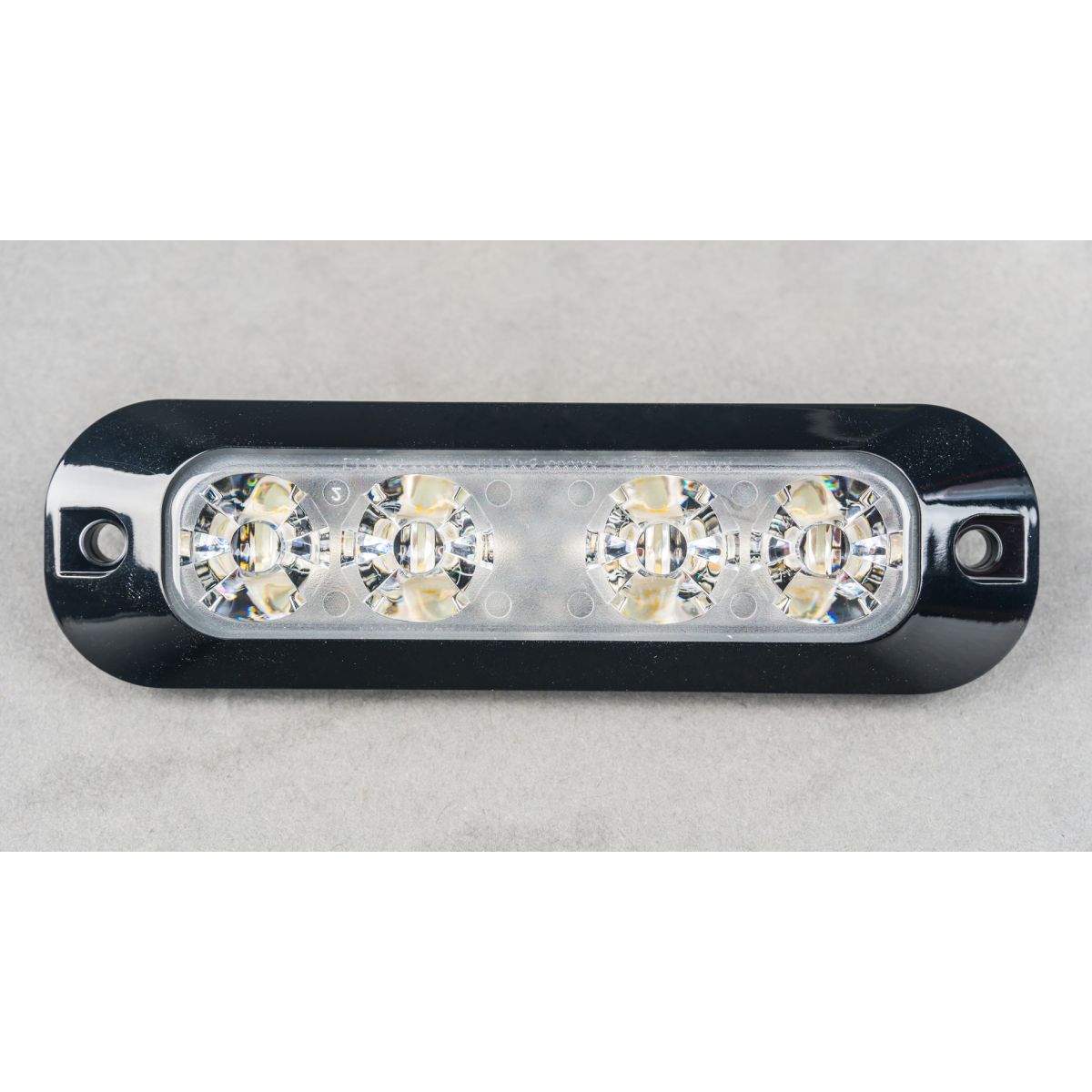

Code 3 XTP4 Series

The Code 3 XTP4 LED Surface Mount Light packages style, versatility, and performance into a compact, sleek design providing all the capabilities demanded from a high-performance light for a fraction of the cost. Each model delivers a bright, controllable signal within a sleek, low-profile design. These compact, waterproof exterior lights can be mounted virtually anywhere on a vehicle to meet any need or application. The exceptional design and versatility of the Code 3 XTP4 LED Surface Mount Light makes it a great addition to any emergency vehicle.

All XTP4s allow the lighthead to use either its built-in flash programming or receive signals from any external flashing device. Each XTP4 can be programmed to operate on their own or in synchronization with other XTP4 lights. The XTP4s round edges and sleek, slim design blends perfectly on the contours of today's vehicles. Each low-profile model measures only 0.6 inch (15 mm) in depth. All XTP4s come with a standard black bezel.

Features:

• Single color available in Amber, Blue, and Red.
• Split color available in Red/Blue, and Red/White.
• Single color models have 30 flash patterns.
• Split color models has 22 flash patterns.
• All models include Steady-burn.
• Syncronizable with up to 32 XTP4s.
• Multiple flash patterns with phase 1 and phase 2 syncing capabilities.
• Black bezel is standard.

Specifications:

• Number of LEDs: 4
• Voltage: 12VDC
• Power Usage: 8 max watts
• Temperature range: -40°F to 158°F (-40°C to 70°C)
• Certifications: SAE J595 Class 1, SAE J575, California Title 13, ECE R65, ECE R10, RoHS
• Dimensions: 1.4” H x 4.7” L x 0.6” D (36 x 119 x 15 mm)

Code 3 Five Year Warranty
