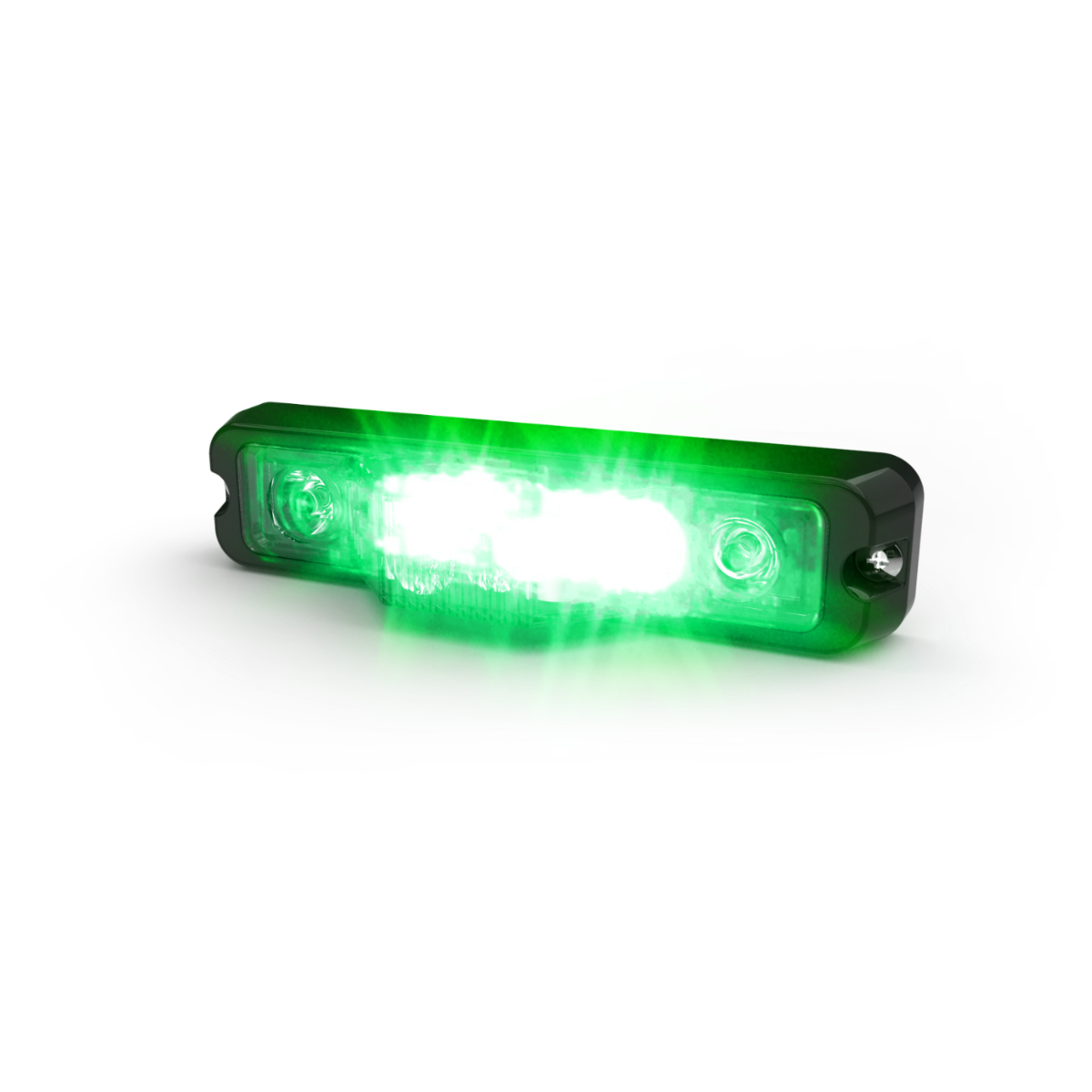

Code 3 M180 Series - Multi Mount, Single-Color, Green LED

The Code 3 M180 Intersection/Takedown/Puddle Light combines 3 lights into one compact form making it one of the most versatile lights ever offered by Code 3. This Class I warning light is a versatile combination of Intersection Warning Light, a Takedown Light, and Puddle Light for ground illumination. Three separate trigger wires enable independant control of the 3 functions. Uses the same bezel and rear mounting holes as the MR6 light. Any brackets designed to fit the MR6 will also work with the M180.

Features

• 29 Single Color Flash Patterns.
• Single Color, Center Section LED Colors: Blue, Red, Amber, White, Green.
• 3 distinct functions: 180 degree warning, Takedown, and Puddle Light.
• The Puddle Light shines down to create a 5 foot diameter bright white ground light.
• Three separate trigger wires enable independant control of the 3 functions.
• Will sync with Chase, MR6, and Mega Thin LED lights.
• Can be mounted anywhere an MR6 can.
• Uses the same bezel and rear mounting holes as the MR6 light.
• Any brackets designed to fit the MR6 will also work with the M180.

Specifications

• Operating Voltage: 12-24 VDC
• Current Draw: 0.9 Amps @ 12 VDC
• Operating Temp: -40°C to 77°C
• Certifications: SAE J845 and J595 Class 1, E/Reg. 65, R10, IP67, Meets Photometric Requirements for California Title 13.
• Dimensions: 0.9' H x 4.5” L x 1.5” W (22.86 mm x 114.3 mm x 38.1 mm).

Code 3 Five Year Warranty
