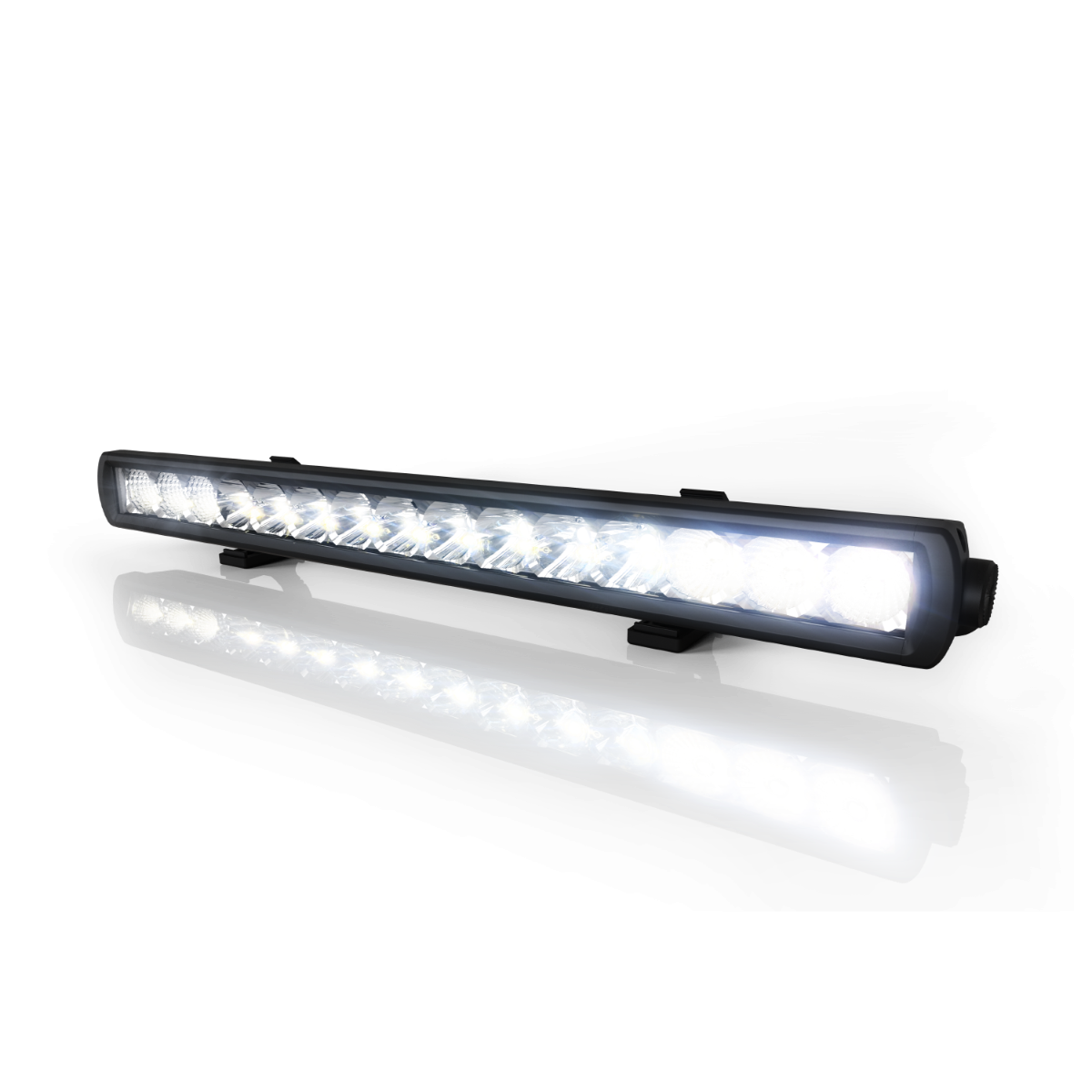

Code 3 CW3100 Series - 20.6 Inch, Flood/Spot Combo

Code 3’s single row utility bars offer bright white light output with low amp draw and a relatively low profile. They are available in three lengths with multiple mounting options. These bars are an ideal choice for a variety of applications. Features include 12-24 VDC operation, deutsch connector, powerful five-watt LEDs, flood or combination flood/spot beam patterns, durable aluminum housing and a tough polycarbonate lens.

Features:

• Deutsch connector
• Built-in vent to prevent fogging
• High-intensity beam
• Adjustable end or extrusion mount
• Aluminum heatsink housing and polycarbonate lens
• Temperature range: -40ºF to 158ºF (-40ºC to 70ºC)

Specifications:

• VOLTS: 12-24V
• DIMS: 2.0” H x 9.3” L x 2.0” D | 51mm H x 193mm L x 84mm D (CW3109)
• 2.0” H x 20.6” L x 2.0” D | 51mm H x 356mm L x 84mm D (CW3114)
• 2.0” H x 32.0” L x 2.0” D | 51mm H x 597mm L x 84mm D (CW3124)
• CERTS: CE, IP67, IP69K, RoHS

5 year warranty
