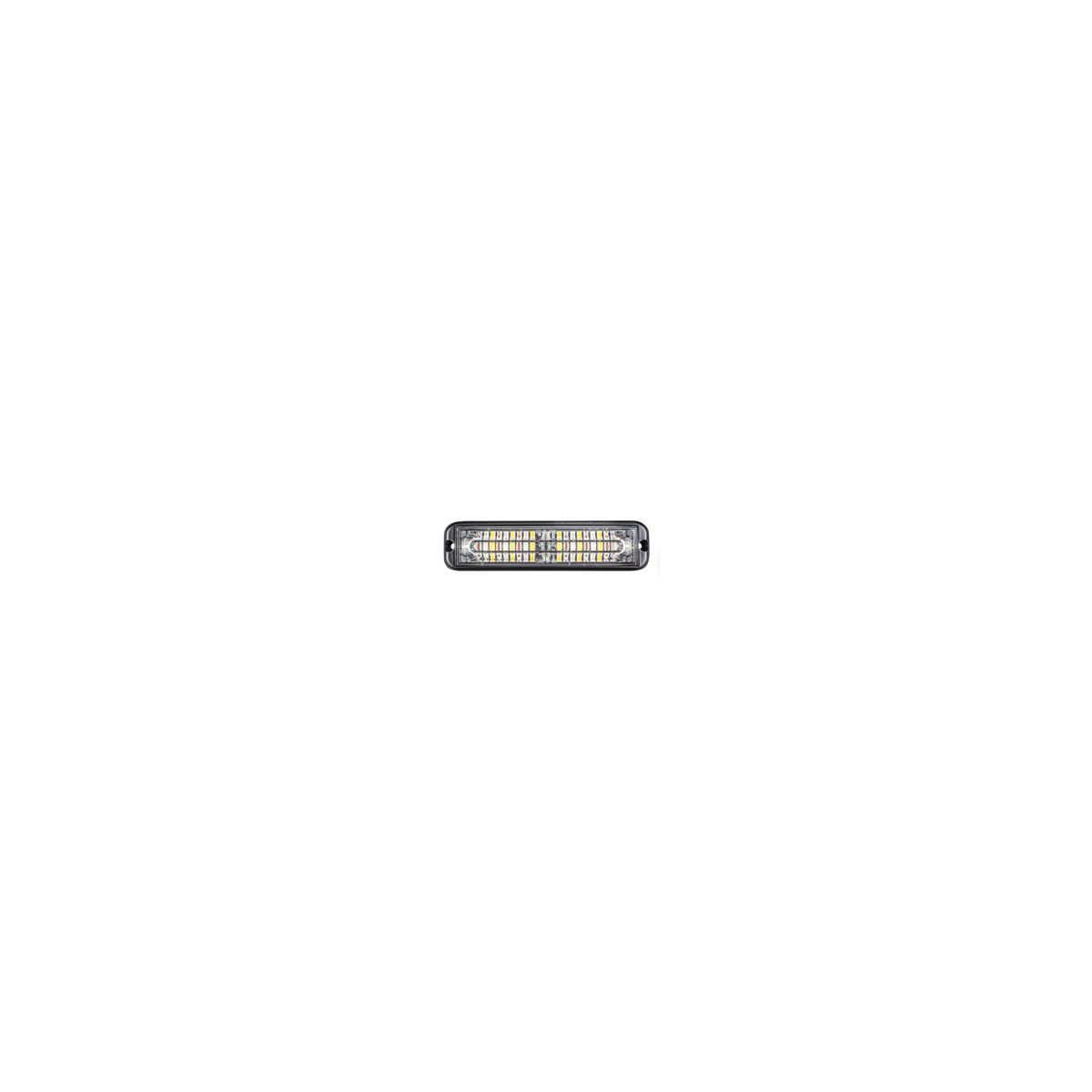

Code 3 Chase TriColor 18 LED Light

The Code 3 Chase TriColor 18 LED Light (Part# CD3766xxx) is a low profile two color LED light for Interior and Exterior surface mount applications. This TriColor directional LED warning light that can be programmed to flash 1, 2, or 3 colors individually or alternately. Available in various color combinations, the CD3766 Directional LED is a surface mount, dual color warning light that is ideal for a wide variety of auxiliary warning applications. Featuring linear optics, 18 high intensity LEDs (6 per color), 16 flash patterns, synchronization capability and an aluminum housing with encapsulated electronics, the CD3766 is an extremely bright, versatile and robust warning light. Each LED color can be controlled independently.

Available Color Combinations:

• CD3766RBW - (6) Red, (6) Blue, and (6) White LEDs
• CD3766RBA - (6) Red, (6) Blue, and (6) Amber LEDs
• CD3766BAW - (6) Blue, (6) Amber, and (6) White LEDs
• CD3766RAW - (6) Red, (6) Amber, and (6) White LEDs

Features:

• 18 high intensity LEDs (6 LEDs of each color)
• Each LED color can be controlled independently
• 16 TriColor flash patterns
• Synchronizable in some modes
• Aluminum housing, polycarbonate lens
• Encapsulated electronics
• Surface Mount

Specifications:

• Voltage:12/24 Volt
• Current: 0.9 Amps
• Temperature Range: -22F to +122F (-30C to +50C)
• Meets SAE J595 Class I, California Title 13, R65, and R10 when properly configured.
• Dimensions: 1.446" H x 6.417" W x 1.186" D (36.74 mm x 163 mm x 30.14 mm).
• Distance between mounting holes (center-to-center): 6-9/16”.

PLEASE NOTE: Red, Amber, White Color Combination: White color only functions as Steady burn. It does not Flash.

Code 3 Three Year Warranty
