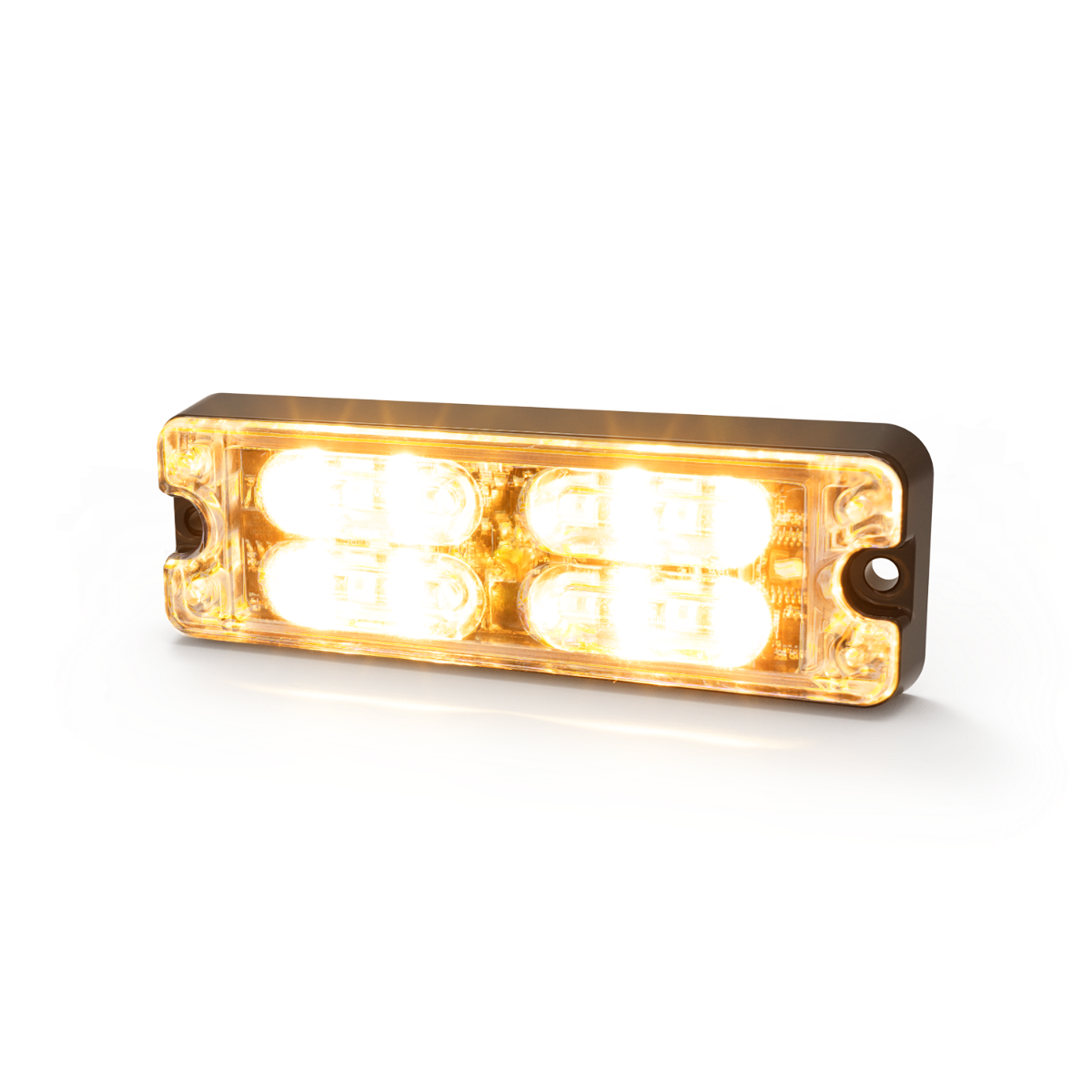

Code 3 CD3511 Series - Clear Lens, Dual-Color, Amber/White LEDs

The CD3511 LED warning light is designed to offer maximum performance with a minimal footprint. This surface mount LED measures only 0.5” deep, features 36 flash patterns and is available in amber, blue, white, green and red single- or dual-color options. Its compact form allows for mounting in virtually any location on a vehicle body, while its twelve 1-watt LEDs provide high-intensity utility and warning lighting across use cases. With a low current draw, long maintenance-free service life and a 5-year warranty, the CD3511 Series is a small yet powerful LED for police, fire and EMS vehicles

Features:

• CD3511 Series replaces SD24 Series.
• Twelve 1-watt high-intensity LEDs provide exceptional utility.
• Synchronizable with additional CD3511s and Hide-A-LEDs.
• All electronics embedded in lightheads.
• 13” (330mm) cables.
• ▪UV-stabilized polycarbonate lens.
• 36 flash patterns.
• Fits standard PIU 2020+ grille mount.
• Matrix® compatible.

Specifications:

• Voltage: 12-24VDC
• Current: 1.4 Amps
• Dimensions: 1.1” H x 3.3” L x 0.51” D (28mm x 84mm x 13mm)

Certifications:

• SAE CLASS I, CE, RCM, ROHS
• California Title 13
• IP67 rated
• R65 and R10

Code 5 Five Year Warranty
